Продукція > INGUN > GKS-112 319 180 A 5010

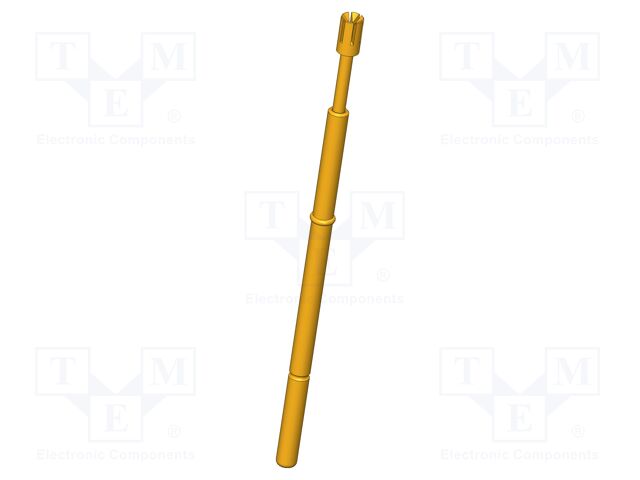

GKS-112 319 180 A 5010

GKS-112 319 180 A 5010 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09DF6039AC0D6&compId=GKS-112-2735.pdf?ci_sign=1751b16fe542cf70c1ac2f289f0adc4c3b8b2fc7 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4mm; 5.3mm; 8A; CuBe; gold-plated
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 8A
Contact material: CuBe
Contact plating: gold-plated
Tip diameter: 1.8mm
Blade tip shape: cone; inverted; slotted
Manufacturer series: GKS-112
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 40.3mm
Spring compression force: 5N
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 319 180 A 5010 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 8A; CuBe; gold-plated, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 8A, Contact material: CuBe, Contact plating: gold-plated, Tip diameter: 1.8mm, Blade tip shape: cone; inverted; slotted, Manufacturer series: GKS-112, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 40.3mm, Spring compression force: 5N.
