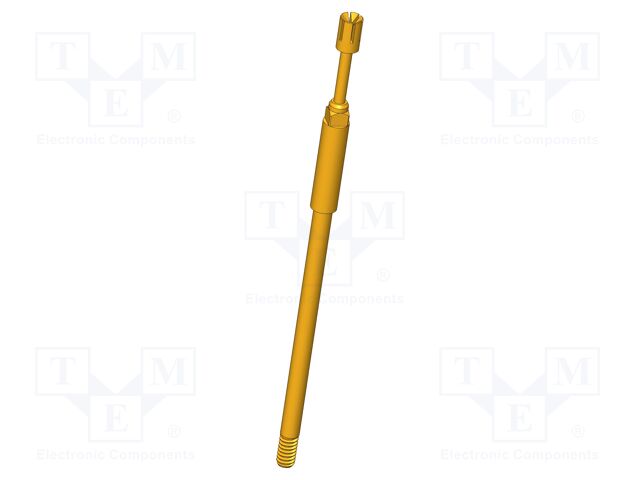

GKS-112 319 200 A 2210 M

GKS-112 319 200 A 2210 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09DE34CEDA0D6&compId=GKS-112-2739.pdf?ci_sign=08d7b8e751dd455c84f3fb4c4e2c7b7444c15d74 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm
Contact material: CuBe
Blade tip shape: cone; inverted; slotted
Mounting: screw-in
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 2mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 44.3mm
Max. contact resistance:: 20mΩ
Current rating: 8A
Spring compression force: 2.25N
Manufacturer series: GKS-112
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 319 200 A 2210 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm, Contact material: CuBe, Blade tip shape: cone; inverted; slotted, Mounting: screw-in, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 2mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 44.3mm, Max. contact resistance:: 20mΩ, Current rating: 8A, Spring compression force: 2.25N, Manufacturer series: GKS-112.
