Продукція > INGUN > GKS-113 203 300 A 0602 M

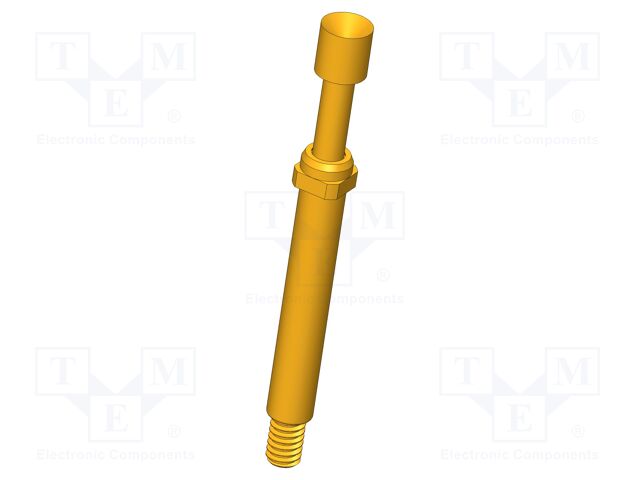

GKS-113 203 300 A 0602 M

GKS-113 203 300 A 0602 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BC09C9A2C0D6&compId=GKS-113-1394.pdf?ci_sign=0c983c03af407eba8b5f372bf8ad49dea4f6f900 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 3mm; 0.6N
Manufacturer series: GKS-113
Contact plating: gold-plated
Test accessories features: magnetic
Mounting: screw-in
Contact material: steel
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 30mΩ
Length: 28.3mm
Spring compression force: 0.6N
Blade tip shape: cone; inverted
Current rating: 5A
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 203 300 A 0602 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 3mm; 0.6N, Manufacturer series: GKS-113, Contact plating: gold-plated, Test accessories features: magnetic, Mounting: screw-in, Contact material: steel, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 30mΩ, Length: 28.3mm, Spring compression force: 0.6N, Blade tip shape: cone; inverted, Current rating: 5A.
