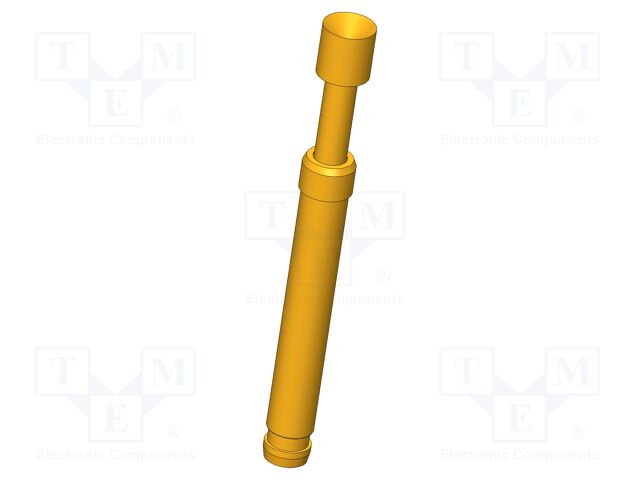

GKS-113 203 300 A 2202C

GKS-113 203 300 A 2202C INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BC69217680D6&compId=GKS-113-1384.pdf?ci_sign=e326ff07338e112feaf8424b85ac382b45e147b1 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 3mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact material: steel
Contact plating: gold-plated
Tip diameter: 3mm
Blade tip shape: cone; inverted
Manufacturer series: GKS-113
Max. contact resistance:: 100mΩ
Operating temperature: -100...200°C
Mounting: push-in
Test accessories features: magnetic
Length: 27.3mm
Spring compression force: 2.25N
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 203 300 A 2202C INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 3mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact material: steel, Contact plating: gold-plated, Tip diameter: 3mm, Blade tip shape: cone; inverted, Manufacturer series: GKS-113, Max. contact resistance:: 100mΩ, Operating temperature: -100...200°C, Mounting: push-in, Test accessories features: magnetic, Length: 27.3mm, Spring compression force: 2.25N.
