Продукція > INGUN > GKS-113 204 180 A 1002 M

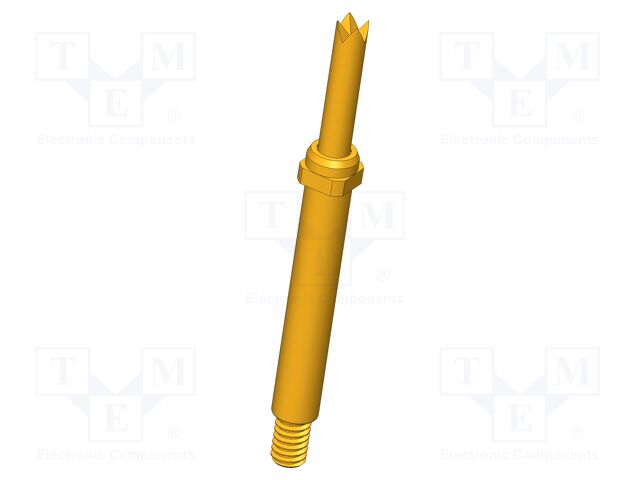

GKS-113 204 180 A 1002 M

GKS-113 204 180 A 1002 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0B30F066480D6&compId=GKS-113-0902.pdf?ci_sign=ac24681a3c0c290ca2e98d8cc650bdbda18d7b9c Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.8mm
Current rating: 5A
Manufacturer series: GKS-113
Contact plating: gold-plated
Contact material: steel
Operating temperature: -40...80°C
Test accessories features: magnetic
Mounting: screw-in
Type of test accessories: test needle
Tip diameter: 1.8mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 30mΩ
Length: 28.3mm
Spring compression force: 1N
Blade tip shape: 4-point; corona
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 204 180 A 1002 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.8mm, Current rating: 5A, Manufacturer series: GKS-113, Contact plating: gold-plated, Contact material: steel, Operating temperature: -40...80°C, Test accessories features: magnetic, Mounting: screw-in, Type of test accessories: test needle, Tip diameter: 1.8mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 30mΩ, Length: 28.3mm, Spring compression force: 1N, Blade tip shape: 4-point; corona.
