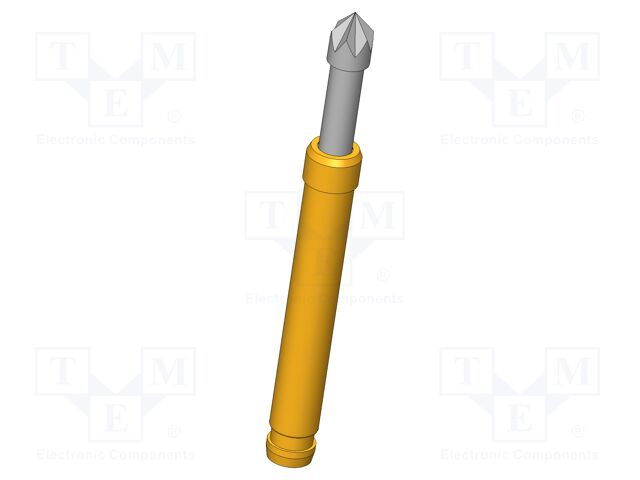

GKS-113 217 230 R 1502 C

GKS-113 217 230 R 1502 C INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BC69217180D6&compId=GKS-113-1375.pdf?ci_sign=0b4d9b41a3d4b9b5bc5d395667688d6c5e0953da Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm
Manufacturer series: GKS-113
Test accessories features: magnetic; self-cleaning
Blade tip shape: pyramid hexagonal
Contact plating: rhodium plated
Contact material: steel
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 2.3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 27.3mm
Max. contact resistance:: 100mΩ
Spring compression force: 1.5N
Current rating: 5A
Mounting: push-in
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 217 230 R 1502 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm, Manufacturer series: GKS-113, Test accessories features: magnetic; self-cleaning, Blade tip shape: pyramid hexagonal, Contact plating: rhodium plated, Contact material: steel, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 2.3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 27.3mm, Max. contact resistance:: 100mΩ, Spring compression force: 1.5N, Current rating: 5A, Mounting: push-in.
