GKS-113 302 400 A 3002 C

GKS-113 302 400 A 3002 C INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BC692172C0D6&compId=GKS-113-1378.pdf?ci_sign=11f8e36c79db127bdb9cc2c4dc39508c070ae105 Виробник: INGUN
Category: Contact Probes

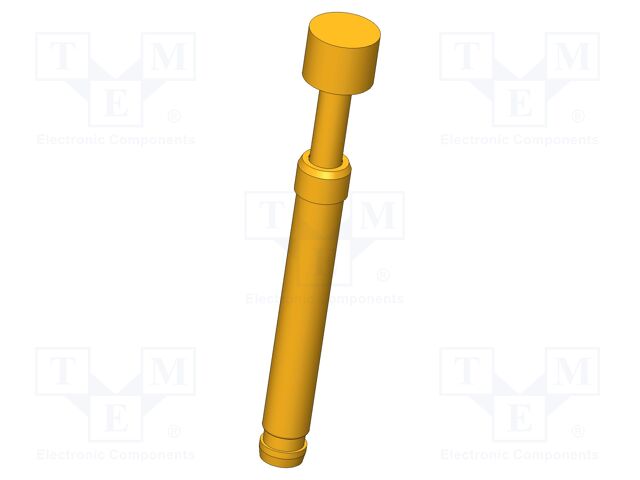

Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 4mm; 3N
Contact material: CuBe
Blade tip shape: cylinder; flat
Mounting: push-in
Contact plating: gold-plated
Test accessories features: magnetic
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 4mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 27.3mm
Max. contact resistance:: 100mΩ
Current rating: 8A
Spring compression force: 3N
Manufacturer series: GKS-113
