Продукція > INGUN > GKS-113 307 420 R 0302

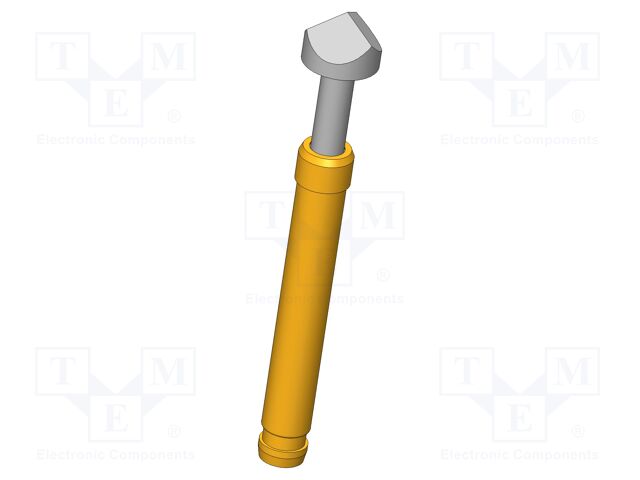

GKS-113 307 420 R 0302

GKS-113 307 420 R 0302 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BE550833E0D6&compId=GKS-113-1507.pdf?ci_sign=5f5b0365360a72715221cef0fcdb55bf6556c052 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 4.2mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Contact material: CuBe
Blade tip shape: sharp
Tip diameter: 4.2mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 27.3mm
Spring compression force: 0.3N
Max. contact resistance:: 30mΩ
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 307 420 R 0302 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 4.2mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Contact material: CuBe, Blade tip shape: sharp, Tip diameter: 4.2mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 27.3mm, Spring compression force: 0.3N, Max. contact resistance:: 30mΩ.
