Продукція > INGUN > GKS-113 319 300 A 5002

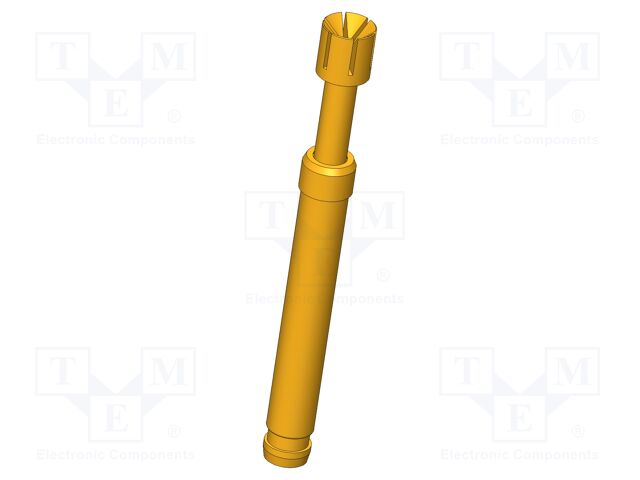

GKS-113 319 300 A 5002

GKS-113 319 300 A 5002 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0BB47CCEE00D6&compId=GKS-113-1321.pdf?ci_sign=8f92fb61ec2e92240922d7d6fbfcb55d0e2e5533 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4mm; 5.3mm; 8A; CuBe; gold-plated
Contact material: CuBe
Manufacturer series: GKS-113
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 27.3mm
Max. contact resistance:: 30mΩ
Spring compression force: 5N
Current rating: 8A
Blade tip shape: cone; inverted
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 319 300 A 5002 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 8A; CuBe; gold-plated, Contact material: CuBe, Manufacturer series: GKS-113, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 27.3mm, Max. contact resistance:: 30mΩ, Spring compression force: 5N, Current rating: 8A, Blade tip shape: cone; inverted.
