GKS-113 355 300 R 1010

GKS-113 355 300 R 1010 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0B55AFC0980D6&compId=GKS-113-1042.pdf?ci_sign=1223f21ffce5aef828604c1747aec5093eb90045 Виробник: INGUN
Category: Contact Probes

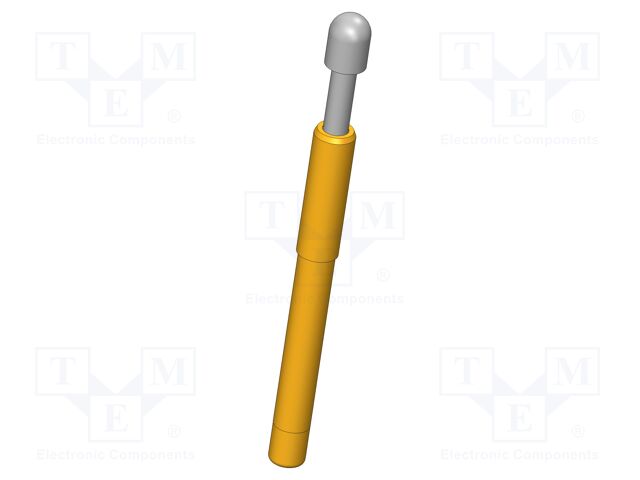

Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 3mm; 1N
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Max. contact resistance:: 30mΩ
Contact material: CuBe
Blade tip shape: rounded
Tip diameter: 3mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic
Length: 36.3mm
Spring compression force: 1N
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-113 355 300 R 1010 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 3mm; 1N, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Max. contact resistance:: 30mΩ, Contact material: CuBe, Blade tip shape: rounded, Tip diameter: 3mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic, Length: 36.3mm, Spring compression force: 1N.
