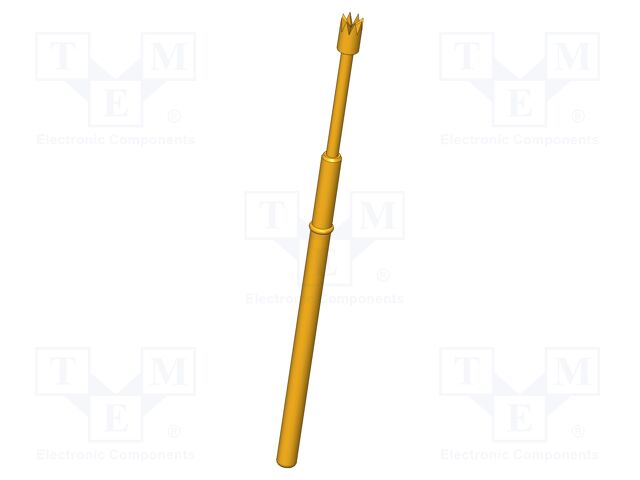

GKS-412 288 180 A 3007 INGUN
Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.8mm
Operating temperature: -40...80°C
Tip diameter: 1.8mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Flange height: 7mm
Max. contact resistance:: 20mΩ
Length: 41.8mm
Spring compression force: 3N
Current rating: 5A
Type of test accessories: test needle
Contact material: steel
Manufacturer series: GKS-412
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Blade tip shape: 8-point; corona
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.8mm
Operating temperature: -40...80°C
Tip diameter: 1.8mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Flange height: 7mm
Max. contact resistance:: 20mΩ
Length: 41.8mm
Spring compression force: 3N
Current rating: 5A
Type of test accessories: test needle
Contact material: steel
Manufacturer series: GKS-412
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Blade tip shape: 8-point; corona
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис GKS-412 288 180 A 3007 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 1.8mm, Operating temperature: -40...80°C, Tip diameter: 1.8mm, Operational spring compression: 8mm, Maksimum spring compression: 9.8mm, Flange height: 7mm, Max. contact resistance:: 20mΩ, Length: 41.8mm, Spring compression force: 3N, Current rating: 5A, Type of test accessories: test needle, Contact material: steel, Manufacturer series: GKS-412, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Blade tip shape: 8-point; corona.
