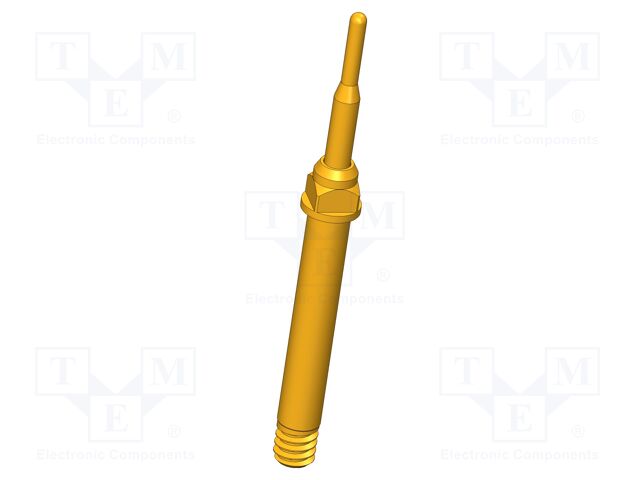

GKS-427 305 064 A 2502 M

GKS-427 305 064 A 2502 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C15D5A11E0D6&compId=GKS-427-0053.pdf?ci_sign=de682cc65f0646fc65009a745219954610aa9ea1 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 3.5mm; 8A; Ø: 0.64mm
Type of test accessories: test needle
Operational spring compression: 3.5mm
Maksimum spring compression: 4.5mm
Current rating: 8A
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Contact material: CuBe
Blade tip shape: rounded
Tip diameter: 0.64mm
Manufacturer series: GKS-427
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic
Length: 19.5mm
Spring compression force: 2.5N
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-427 305 064 A 2502 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 3.5mm; 8A; Ø: 0.64mm, Type of test accessories: test needle, Operational spring compression: 3.5mm, Maksimum spring compression: 4.5mm, Current rating: 8A, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Contact material: CuBe, Blade tip shape: rounded, Tip diameter: 0.64mm, Manufacturer series: GKS-427, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic, Length: 19.5mm, Spring compression force: 2.5N.
