Продукція > ONPOW > GQ16B-10E/J/41RGB/S

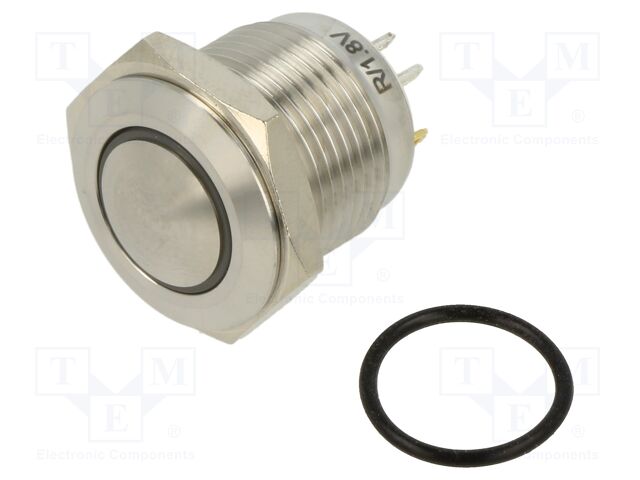

GQ16B-10E/J/41RGB/S

GQ16B-10E/J/41RGB/S ONPOW

pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDBBAD2D0B00FA80D4&compId=GQ16B-10EJ-RGB.pdf?ci_sign=2d00168113f52de03cf89c3f9f12b93a26ea4f7f Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP65; Ø16mm
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPST-NO
AC contacts rating @R: 3A / 250V AC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: red/green/blue
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: convex
Mounting hole diameter: Ø16mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...50°C
на замовлення 15 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+587.83 грн
3+394.48 грн
7+373.07 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GQ16B-10E/J/41RGB/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP65; Ø16mm, Type of switch: vandal resistant, Number of positions: 2, Contacts configuration: SPST-NO, AC contacts rating @R: 3A / 250V AC, IP rating: IP65, Switching method: OFF-(ON), Illumination: LED; ring, Backlight colour: red/green/blue, Leads: for soldering, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Mechanical durability: 1000000 cycles, Button shape: convex, Mounting hole diameter: Ø16mm, Body colour: silver, Body material: stainless steel, Ring shape: rounded, Contact material: silver alloy, Operating temperature: -25...50°C.
