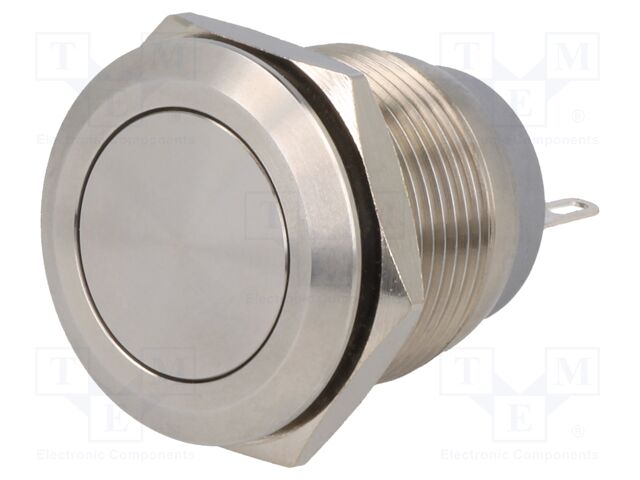

GQ19-11W ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9298F235980C7&compId=GQ19-11W.pdf?ci_sign=a1e4b865da34f6c37eb344d39d74b557b687a5d6

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9469FF83780C7&compId=GQ19PF-10E.pdf?ci_sign=de6485db3045f1660cb788762312ae80e7299e29

Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67
Operating temperature: -20...55°C
IP rating: IP67
Mounting hole diameter: Ø19mm
Leads: for soldering
Electrical life: 50000 cycles
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 2A / 36V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 4N
Illumination: none
Body colour: silver
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис GQ19-11W ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67, Operating temperature: -20...55°C, IP rating: IP67, Mounting hole diameter: Ø19mm, Leads: for soldering, Electrical life: 50000 cycles, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 2A / 36V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 4N, Illumination: none, Body colour: silver, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ.
