Продукція > ONPOW > GQ19F-10E/RG/12/S (DUAL LED, 12V)

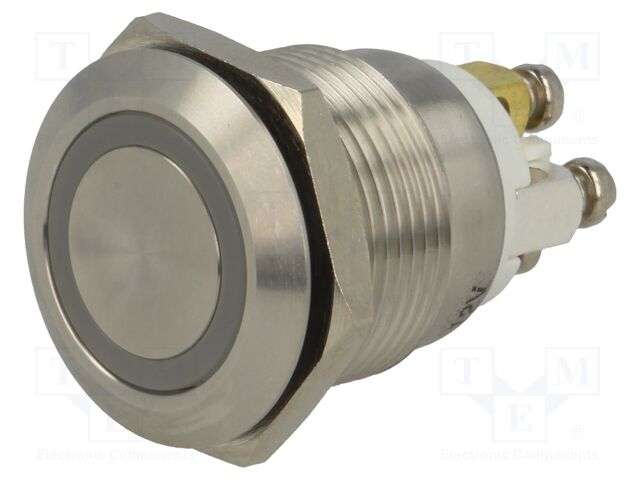

GQ19F-10E/RG/12/S (DUAL LED, 12V) ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED929AEDBE1A0C7&compId=GQ19F-10E%20Bi-colour%20LED.pdf?ci_sign=9c8603d5c41d7d90313b939438f0a12d54bf066e

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9469FF83780C7&compId=GQ19PF-10E.pdf?ci_sign=de6485db3045f1660cb788762312ae80e7299e29

Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: LED; ring
Test voltage: 1.5kV
Leads: screw terminals
Electrical life: 200000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Related items: M12-19F
Operating temperature: -20...55°C
Switches features: colour change by changing polarization
Backlight colour: red/green
Illumination voltage: 12V

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис GQ19F-10E/RG/12/S (DUAL LED, 12V) ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, DC contacts rating @R: 2A / 36V DC, IP rating: IP65, Switching method: OFF-(ON), Illumination: LED; ring, Test voltage: 1.5kV, Leads: screw terminals, Electrical life: 200000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Mechanical durability: 1000000 cycles, Button shape: flat, Mounting hole diameter: Ø19mm, Body colour: silver, Body material: stainless steel, Ring shape: rounded, Contact material: silver alloy, Related items: M12-19F, Operating temperature: -20...55°C, Switches features: colour change by changing polarization, Backlight colour: red/green, Illumination voltage: 12V.
