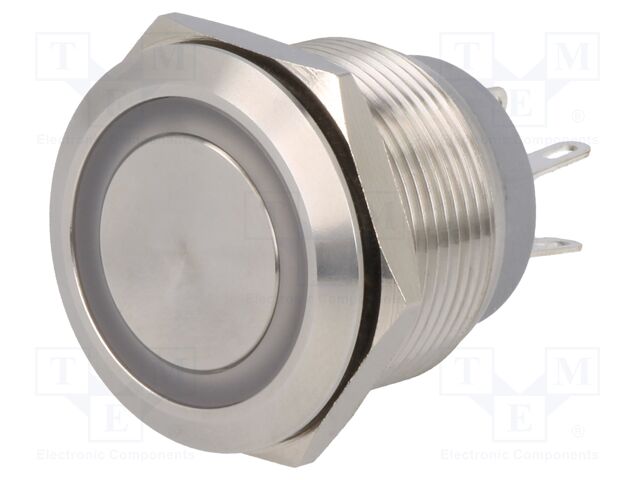

GQ22-11WE/RG/24V

GQ22-11WE/RG/24V ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92A4E21F9C0C7&compId=GQ22-11WE.pdf?ci_sign=1cd4266c3046df257fe3a3ffc776e7b5191a6180 Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67
Operating temperature: -20...55°C
IP rating: IP67
Mounting hole diameter: Ø22mm
Leads: for soldering
Electrical life: 50000 cycles
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 2A / 36V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 24V
Body colour: silver
Backlight colour: red/green
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
на замовлення 17 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+904.06 грн
2+609.26 грн
5+575.93 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GQ22-11WE/RG/24V ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67, Operating temperature: -20...55°C, IP rating: IP67, Mounting hole diameter: Ø22mm, Leads: for soldering, Electrical life: 50000 cycles, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 2A / 36V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 4N, Illumination: LED; ring, Illumination voltage: 24V, Body colour: silver, Backlight colour: red/green, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ.
