Продукція > ONPOW > GQ25-L-11E/J/W/12V/S

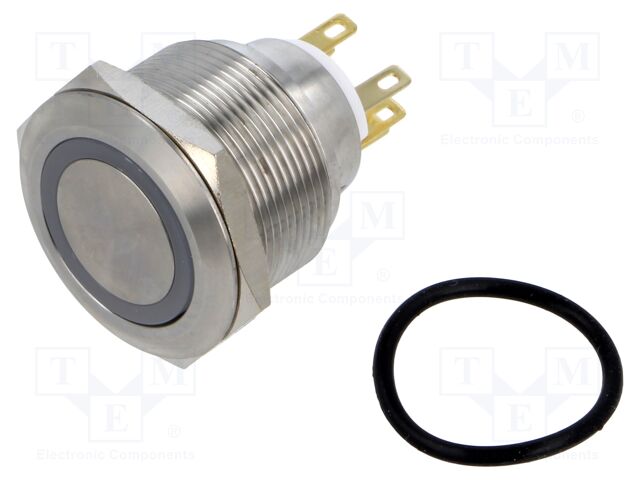

GQ25-L-11E/J/W/12V/S

GQ25-L-11E/J/W/12V/S ONPOW

GQ-L.pdf Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
IP rating: IP65
Operating temperature: -25...55°C
Illumination: LED; ring
Related items: M12-25F
Switching method: ON-(ON)
Type of switch: vandal resistant
Contacts configuration: SPDT
Body material: stainless steel
Max. contact resistance:: 50mΩ
Mounting hole diameter: Ø25mm
Dimensions: Ø28x35.5mm
AC contacts rating @R: 3A / 220V AC
Stable positions number: 1
DC contacts rating @R: 5A / 24V DC
Number of positions: 2
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Backlight colour: white
Leads: for soldering
Button shape: flat; round
Manufacturer series: GQ25-L
Mechanical impact resistance: IK09
на замовлення 16 шт:
термін постачання 14-30 дні (днів)
Кількість Ціна
1+822.48 грн
10+683.16 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GQ25-L-11E/J/W/12V/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, IP rating: IP65, Operating temperature: -25...55°C, Illumination: LED; ring, Related items: M12-25F, Switching method: ON-(ON), Type of switch: vandal resistant, Contacts configuration: SPDT, Body material: stainless steel, Max. contact resistance:: 50mΩ, Mounting hole diameter: Ø25mm, Dimensions: Ø28x35.5mm, AC contacts rating @R: 3A / 220V AC, Stable positions number: 1, DC contacts rating @R: 5A / 24V DC, Number of positions: 2, Illumination voltage: 12V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Backlight colour: white, Leads: for soldering, Button shape: flat; round, Manufacturer series: GQ25-L, Mechanical impact resistance: IK09.
