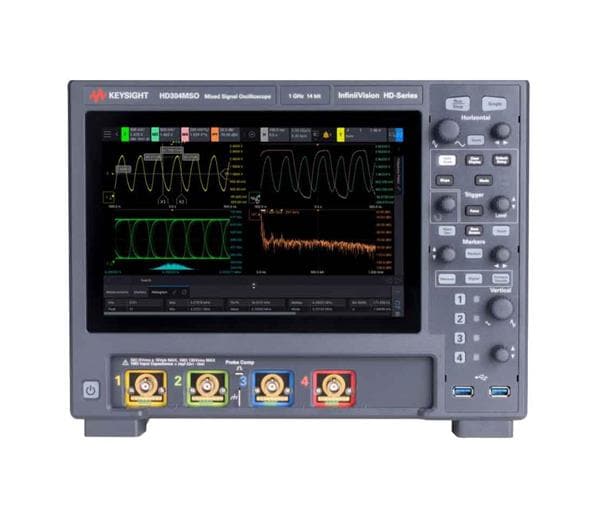

HD304MSO Keysight

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 200MHz; 3,2Gsps; 100Mpts; ≤3.5ns, Manufacturer series: InfiniiVision HD3 Series, Related items: HD3CASE; HD3COVER; HD3MSO; HD300MSO-100; HD300MSO-050; HD304MSO-350; HD304MSO-500; HD304MSO-01G, Body dimensions: 335x262x168mm, Interface: LAN; USB 2.0; USB 3.0 x2, Number of channels: 4, Input impedance: 50Ω; 1MΩ/24pF, Measuring instrument features: 16 digital channels, Sampling: 3,2Gsps, Type of oscilloscope: digital, Trigger: falling-edge; fall time; pattern; risetime; rising-edge; runt; zone, Input coupling: AC, DC, Vertical resolution: 14bit, Trigger modes: automatic; normal; single; triggered, Trigger source: CH1; CH2; CH3; CH4; digital channel (D0...D15); external signal; line, Trigger coupling: AC; DC; noise, Max. input voltage: 190V, Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use., Band: 200MHz, Rise time: ≤3.5ns, Input sensitivity: 500µV/div...1V/div (50Ω); 500µV/div...10V/div (1MΩ), Time base: 500p...50s/div, Supply voltage 400Hz: 100...120V AC, Memory record length: 100Mpts, Touchpad: yes, Kind of display used: LCD TFT 10,1", Supply voltage: 100...240V AC, кількість в упаковці: 1 шт.
