Продукція > INGUN > HFS-110 303 115 A 3002 A

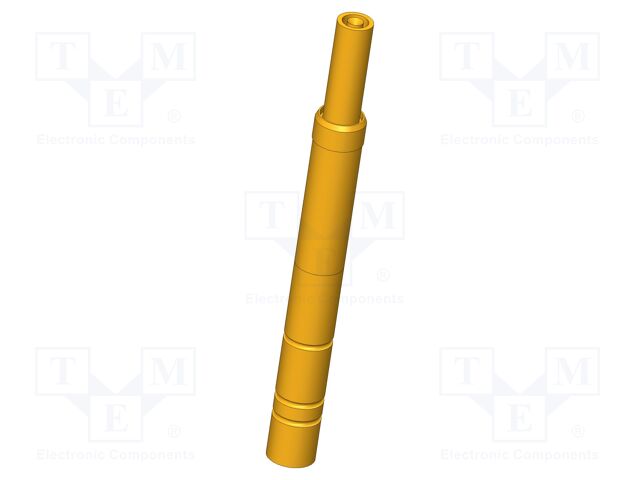

HFS-110 303 115 A 3002 A

HFS-110 303 115 A 3002 A INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C42B016620D6&compId=HFS-110-0010.pdf?ci_sign=a2335fbc8b54b28c7b829b4720c9d9e4c0c99269 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 3A; HFS-110
Blade tip shape: cone; flat; inverted
Contact material: CuBe
Mounting: push-in
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 3A
Type of test accessories: test needle
Operating temperature: -40...80°C
Operational spring compression: 4mm
Maksimum spring compression: 5mm
Length: 35mm
Current rating: 3A
Spring compression force: 4.5N
Impedance: 50Ω
Dielectric strength: 1.1kV
Max. frequency: 700MHz
Manufacturer series: HFS-110
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-110 303 115 A 3002 A INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 3A; HFS-110, Blade tip shape: cone; flat; inverted, Contact material: CuBe, Mounting: push-in, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 3A, Type of test accessories: test needle, Operating temperature: -40...80°C, Operational spring compression: 4mm, Maksimum spring compression: 5mm, Length: 35mm, Current rating: 3A, Spring compression force: 4.5N, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 700MHz, Manufacturer series: HFS-110.
