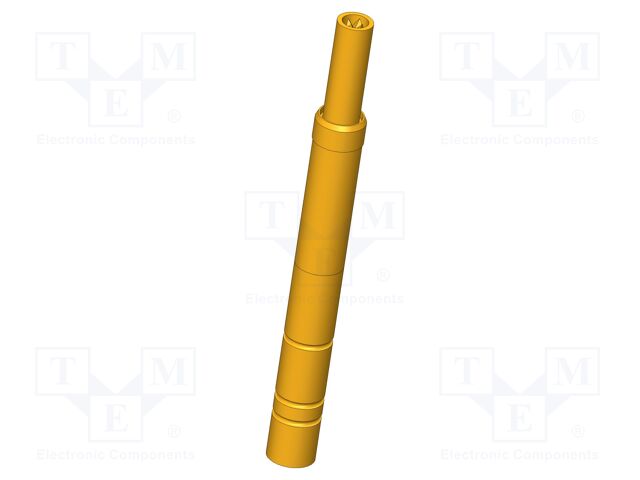

HFS-110 304 115 A 3002 A INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 3A; HFS-110
Current rating: 3A
Impedance: 50Ω
Length: 35mm
Contact material: CuBe
Dielectric strength: 1.1kV
Blade tip shape: 4-point; corona; flat
Type of test accessories: test needle
Maksimum spring compression: 5mm
Operational spring compression: 4mm
Test accessories features: outer conductor maximum current: 3A
Manufacturer series: HFS-110
Spring compression force: 4.5N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 700MHz
Operating temperature: -40...80°C
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-110 304 115 A 3002 A INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 3A; HFS-110, Current rating: 3A, Impedance: 50Ω, Length: 35mm, Contact material: CuBe, Dielectric strength: 1.1kV, Blade tip shape: 4-point; corona; flat, Type of test accessories: test needle, Maksimum spring compression: 5mm, Operational spring compression: 4mm, Test accessories features: outer conductor maximum current: 3A, Manufacturer series: HFS-110, Spring compression force: 4.5N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 700MHz, Operating temperature: -40...80°C, кількість в упаковці: 1 шт.
