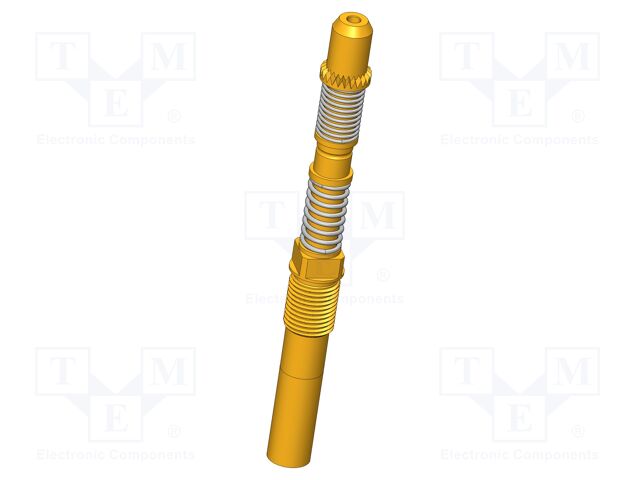

HFS-807 303 051 A 6842 HFM-M

HFS-807 303 051 A 6842 HFM-M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C4FA048140D6&compId=HFS-807-0002.pdf?ci_sign=bb73fdc75a43b2013f47e47a41a301e73b09ac03 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.51mm
Mounting: screw-in
Manufacturer series: HFS-807
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 3A
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.51mm
Operational spring compression: 1mm
Maksimum spring compression: 1.5mm
Flange diameter: 3.5mm
Length: 34.6mm
Current rating: 2A
Spring compression force: 6.8N
Impedance: 50Ω
Blade tip shape: cone; head 42; inverted
Max. frequency: 12GHz
Contact material: CuBe
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-807 303 051 A 6842 HFM-M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.51mm, Mounting: screw-in, Manufacturer series: HFS-807, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 3A, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 0.51mm, Operational spring compression: 1mm, Maksimum spring compression: 1.5mm, Flange diameter: 3.5mm, Length: 34.6mm, Current rating: 2A, Spring compression force: 6.8N, Impedance: 50Ω, Blade tip shape: cone; head 42; inverted, Max. frequency: 12GHz, Contact material: CuBe.
