Продукція > INGUN > HFS-807 308 030 A 6842 HFM-F-M
HFS-807 308 030 A 6842 HFM-F-M

HFS-807 308 030 A 6842 HFM-F-M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C482343240D6&compId=HFS-807-0004.pdf?ci_sign=1fe5adf3dd6fcc2f62db1be7de29225c6db9d4a2 Виробник: INGUN
Category: Contact Probes

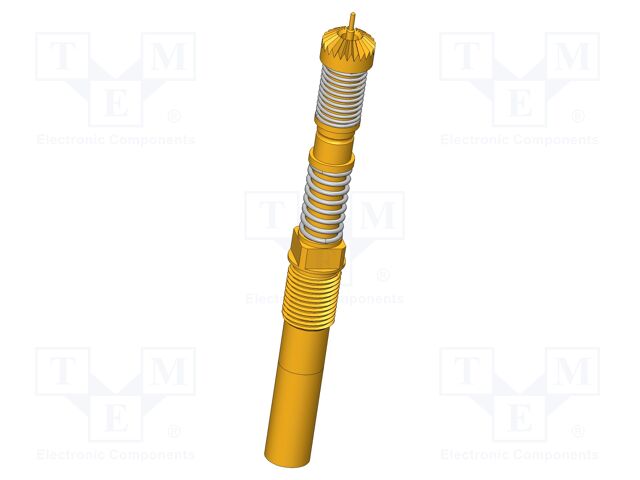

Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm
Mounting: screw-in
Manufacturer series: HFS-807
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 3A; self-cleaning
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.3mm
Operational spring compression: 1mm
Maksimum spring compression: 1.5mm
Flange diameter: 3.5mm
Length: 33.5mm
Current rating: 2A
Spring compression force: 6.8N
Impedance: 50Ω
Blade tip shape: cone; head 42
Max. frequency: 12GHz
Contact material: CuBe
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-807 308 030 A 6842 HFM-F-M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm, Mounting: screw-in, Manufacturer series: HFS-807, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 3A; self-cleaning, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 0.3mm, Operational spring compression: 1mm, Maksimum spring compression: 1.5mm, Flange diameter: 3.5mm, Length: 33.5mm, Current rating: 2A, Spring compression force: 6.8N, Impedance: 50Ω, Blade tip shape: cone; head 42, Max. frequency: 12GHz, Contact material: CuBe.
