Продукція > INGUN > HFS-807 308 030 A 6842 HTE-F-M
HFS-807 308 030 A 6842 HTE-F-M

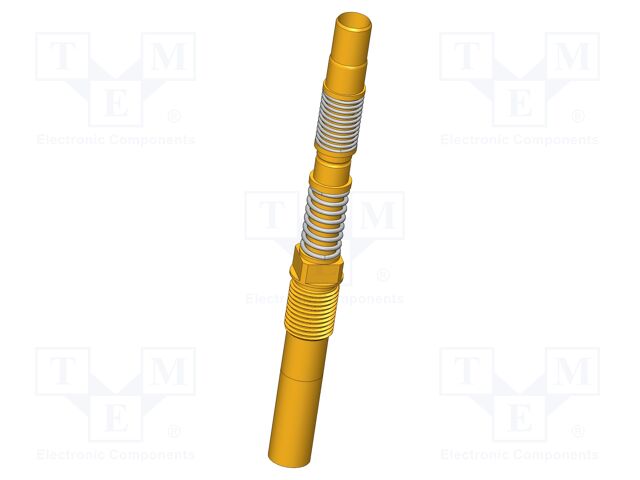

HFS-807 308 030 A 6842 HTE-F-M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C4FA048280D6&compId=HFS-807-0003.pdf?ci_sign=0265723605985b39e5fc8efc7f94e33d684afded Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm
Mounting: screw-in
Manufacturer series: HFS-807
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 3A; self-cleaning
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.3mm
Operational spring compression: 1mm
Maksimum spring compression: 1.5mm
Length: 35.5mm
Current rating: 2A
Spring compression force: 6.8N
Impedance: 50Ω
Blade tip shape: cone; head 42
Max. frequency: 12GHz
Contact material: CuBe
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-807 308 030 A 6842 HTE-F-M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm, Mounting: screw-in, Manufacturer series: HFS-807, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 3A; self-cleaning, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 0.3mm, Operational spring compression: 1mm, Maksimum spring compression: 1.5mm, Length: 35.5mm, Current rating: 2A, Spring compression force: 6.8N, Impedance: 50Ω, Blade tip shape: cone; head 42, Max. frequency: 12GHz, Contact material: CuBe.
