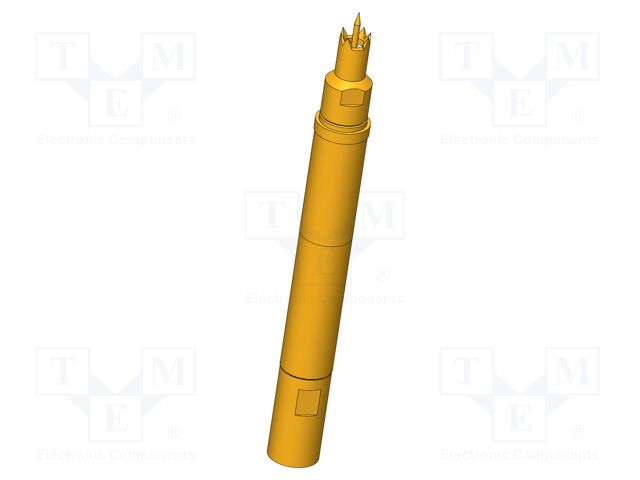

HFS-810 201 051 A 8006 P INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 2A; Ø: 0.51mm
Current rating: 2A
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 0.51mm
Test accessories features: outer conductor maximum current: 10A
Manufacturer series: HFS-810
Spring compression force: 8N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 2GHz
Operating temperature: -40...80°C
Impedance: 50Ω
Length: 43mm
Contact material: steel
Blade tip shape: cone; serrated
Type of test accessories: test needle
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 201 051 A 8006 P INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 2A; Ø: 0.51mm, Current rating: 2A, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 0.51mm, Test accessories features: outer conductor maximum current: 10A, Manufacturer series: HFS-810, Spring compression force: 8N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 2GHz, Operating temperature: -40...80°C, Impedance: 50Ω, Length: 43mm, Contact material: steel, Blade tip shape: cone; serrated, Type of test accessories: test needle, кількість в упаковці: 1 шт.
