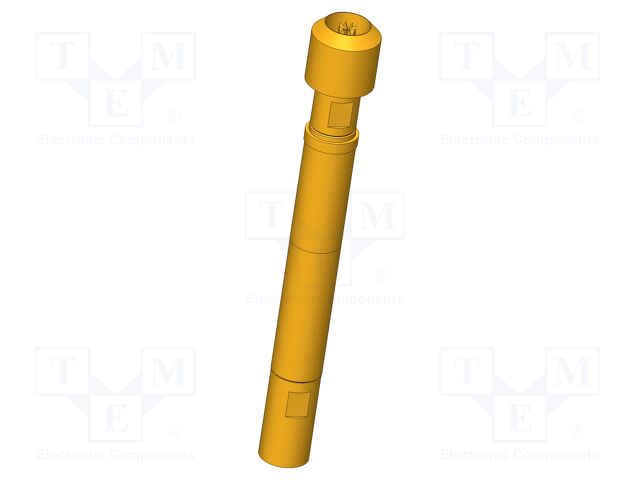

HFS-810 288 150 A 9342 F88R

HFS-810 288 150 A 9342 F88R INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C65D240E80D6&compId=HFS-810-0443.pdf?ci_sign=daebca96f81e3178f26d0baf902c2146c9518877 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 2A; Ø: 1.5mm
Manufacturer series: HFS-810
Contact material: steel
Mounting: push-in
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 10A; self-cleaning
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 1.5mm
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Flange diameter: 6.1mm
Length: 43.2mm
Current rating: 2A
Spring compression force: 9.3N
Impedance: 50Ω
Dielectric strength: 1.1kV
Max. frequency: 2GHz
Blade tip shape: 8-point; corona; head 42
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-810 288 150 A 9342 F88R INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 2A; Ø: 1.5mm, Manufacturer series: HFS-810, Contact material: steel, Mounting: push-in, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 10A; self-cleaning, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 1.5mm, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Flange diameter: 6.1mm, Length: 43.2mm, Current rating: 2A, Spring compression force: 9.3N, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 2GHz, Blade tip shape: 8-point; corona; head 42.
