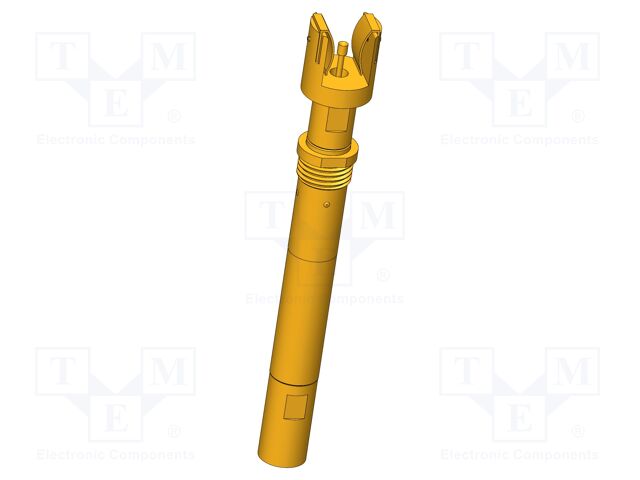

HFS-810 303 090 A 5340 GT13 4M INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm
Mounting: screw-in
Operating temperature: -40...80°C
Test accessories features: outer conductor maximum current: 3A
Type of test accessories: test needle
Tip diameter: 0.9mm
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Flange diameter: 6.5mm
Length: 44mm
Current rating: 3A
Spring compression force: 5.3N
Impedance: 50Ω
Dielectric strength: 1.1kV
Max. frequency: 2GHz
Blade tip shape: cone; inverted; with traverse groove
Contact material: CuBe
Contact plating: gold-plated
Manufacturer series: HFS-810
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 303 090 A 5340 GT13 4M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm, Mounting: screw-in, Operating temperature: -40...80°C, Test accessories features: outer conductor maximum current: 3A, Type of test accessories: test needle, Tip diameter: 0.9mm, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Flange diameter: 6.5mm, Length: 44mm, Current rating: 3A, Spring compression force: 5.3N, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 2GHz, Blade tip shape: cone; inverted; with traverse groove, Contact material: CuBe, Contact plating: gold-plated, Manufacturer series: HFS-810, кількість в упаковці: 1 шт.
