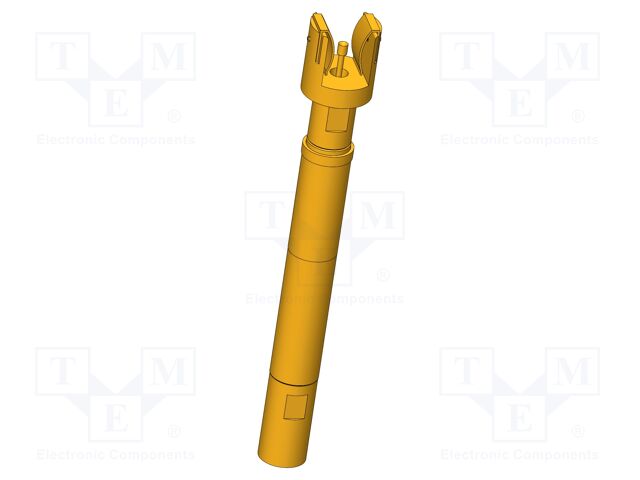

HFS-810 303 090 A 8040 GT13 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm, Mounting: push-in, Operating temperature: -40...80°C, Test accessories features: outer conductor maximum current: 3A, Type of test accessories: test needle, Tip diameter: 0.9mm, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Flange diameter: 6.5mm, Length: 45mm, Current rating: 3A, Spring compression force: 9.3N, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 2GHz, Blade tip shape: cone; inverted; with traverse groove, Contact material: CuBe, Contact plating: gold-plated, Manufacturer series: HFS-810.
