Продукція > INGUN > HFS-810 303 150 A 5342 RF3

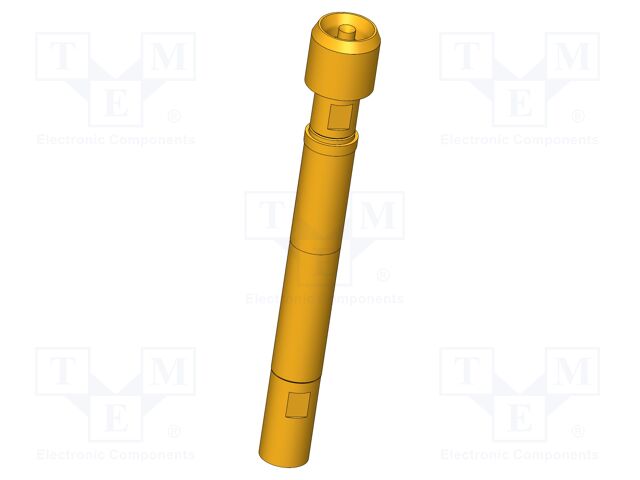

HFS-810 303 150 A 5342 RF3

HFS-810 303 150 A 5342 RF3 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C6634D5940D6&compId=HFS-810-0415.pdf?ci_sign=f1952bafb7ce6b9cd03f074630a19956c1055700 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated
Type of test accessories: test needle
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Contact plating: gold-plated
Tip diameter: 1.5mm
Blade tip shape: cone; head 42; inverted
Spring compression force: 5.3N
Mounting: push-in
Manufacturer series: HFS-810
Test accessories features: outer conductor maximum current: 10A
Contact material: CuBe
Flange diameter: 6.1mm
Length: 43.2mm
Current rating: 3A
Impedance: 50Ω
Dielectric strength: 1.1kV
Operating temperature: -40...80°C
Max. frequency: 2GHz
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-810 303 150 A 5342 RF3 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated, Type of test accessories: test needle, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Contact plating: gold-plated, Tip diameter: 1.5mm, Blade tip shape: cone; head 42; inverted, Spring compression force: 5.3N, Mounting: push-in, Manufacturer series: HFS-810, Test accessories features: outer conductor maximum current: 10A, Contact material: CuBe, Flange diameter: 6.1mm, Length: 43.2mm, Current rating: 3A, Impedance: 50Ω, Dielectric strength: 1.1kV, Operating temperature: -40...80°C, Max. frequency: 2GHz.
