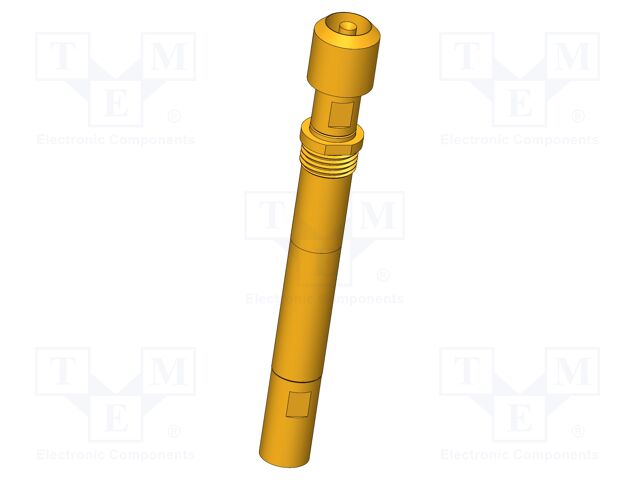

HFS-810 303 150 A 8042 FS1M INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Type of test accessories: test needle
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Current rating: 3A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: cone; head 42; inverted
Tip diameter: 1.5mm
Manufacturer series: HFS-810
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: outer conductor maximum current: 10A
Length: 43.2mm
Spring compression force: 8N
Impedance: 50Ω
Max. frequency: 2GHz
Flange diameter: 5.8mm
Dielectric strength: 1.1kV
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 303 150 A 8042 FS1M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Type of test accessories: test needle, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Current rating: 3A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: cone; head 42; inverted, Tip diameter: 1.5mm, Manufacturer series: HFS-810, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: outer conductor maximum current: 10A, Length: 43.2mm, Spring compression force: 8N, Impedance: 50Ω, Max. frequency: 2GHz, Flange diameter: 5.8mm, Dielectric strength: 1.1kV, кількість в упаковці: 1 шт.
