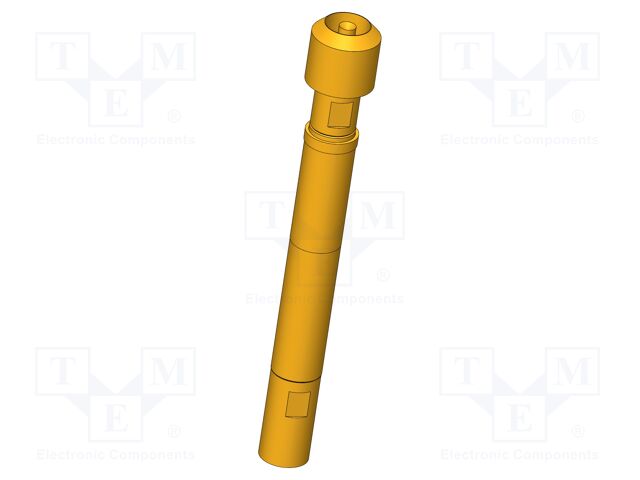

HFS-810 303 150 A 9342 F INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Manufacturer series: HFS-810
Operating temperature: -40...80°C
Current rating: 3A
Impedance: 50Ω
Flange diameter: 6.1mm
Length: 43.2mm
Contact material: CuBe
Blade tip shape: cone; head 42; inverted
Type of test accessories: test needle
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 1.5mm
Test accessories features: outer conductor maximum current: 10A
Spring compression force: 9.3N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 2GHz
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 303 150 A 9342 F INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Manufacturer series: HFS-810, Operating temperature: -40...80°C, Current rating: 3A, Impedance: 50Ω, Flange diameter: 6.1mm, Length: 43.2mm, Contact material: CuBe, Blade tip shape: cone; head 42; inverted, Type of test accessories: test needle, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 1.5mm, Test accessories features: outer conductor maximum current: 10A, Spring compression force: 9.3N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 2GHz, кількість в упаковці: 1 шт.
