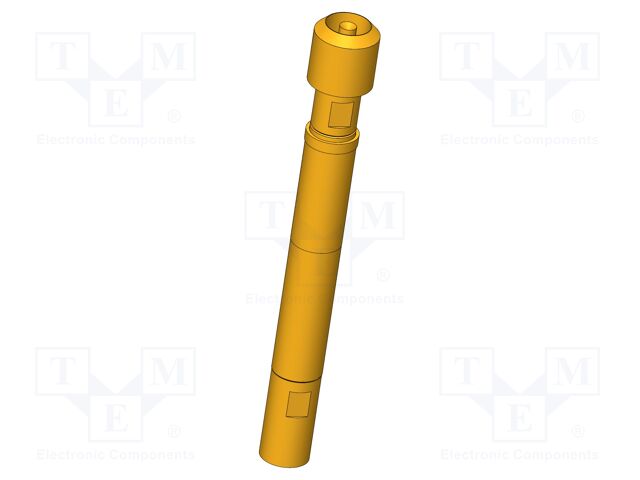

HFS-810 303 150 A 9342 FS1 INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Manufacturer series: HFS-810
Contact material: CuBe
Mounting: push-in
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 10A
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 1.5mm
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Flange diameter: 5.8mm
Length: 43.2mm
Current rating: 3A
Spring compression force: 9.3N
Impedance: 50Ω
Max. frequency: 2GHz
Blade tip shape: cone; head 42; inverted
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 303 150 A 9342 FS1 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Manufacturer series: HFS-810, Contact material: CuBe, Mounting: push-in, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 10A, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 1.5mm, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Flange diameter: 5.8mm, Length: 43.2mm, Current rating: 3A, Spring compression force: 9.3N, Impedance: 50Ω, Max. frequency: 2GHz, Blade tip shape: cone; head 42; inverted, кількість в упаковці: 1 шт.
