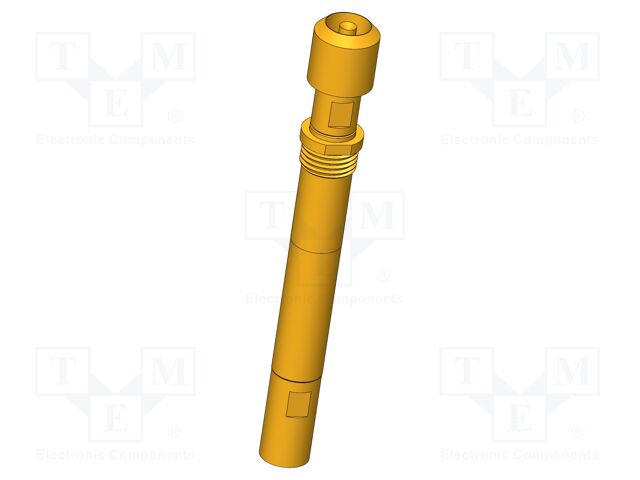

HFS-810 303 150 A 9342 FS1M INGUN

Category: Test Probes, Description: Test probe: RF; 3A; Ø: 1.5mm; HFS-810; CuBe; 9.3N; screw-in; L: 43.2mm, Mounting: screw-in, Test accessories features: outer conductor maximum current: 10A, Tip diameter: 1.5mm, Type of test probe: RF, Blade tip shape: cone; head 42; inverted, Spring compression force: 9.3N, Flange diameter: 5.8mm, Dielectric strength: 1.1kV, Contact plating: gold-plated, Maksimum spring compression: 3.7mm, Max. frequency: 2GHz, Contact material: CuBe, Manufacturer series: HFS-810, Current rating: 3A, Operational spring compression: 2mm, Operating temperature: -40...80°C, Impedance: 50Ω, Length: 43.2mm.
