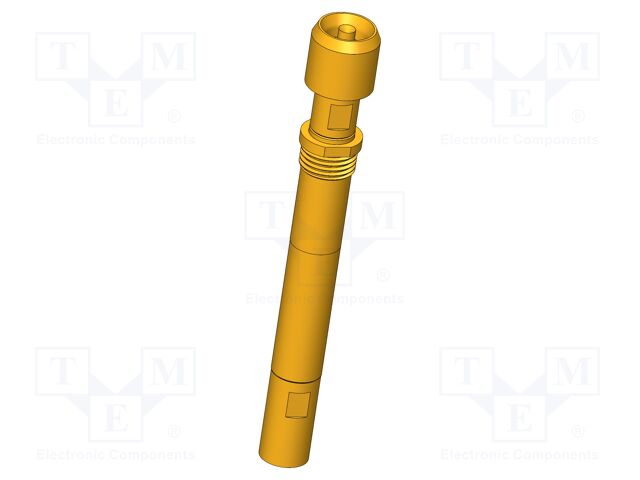

HFS-810 303 150 A 9342 RF3 M INGUN

Category: Test Probes, Description: Test acces: test needle; -40÷80°C; 3A; Ø: 1.5mm; Contacts: CuBe, Type of test accessories: test needle, Maksimum spring compression: 3.7mm, Tip diameter: 1.5mm, Spring compression force: 9.3N, Contact plating: gold-plated, Operational spring compression: 2mm, Blade tip shape: cone; head 42; inverted, Length: 43.2mm, Test accessories features: outer conductor maximum current: 10A, Flange diameter: 6.1mm, Dielectric strength: 1.1kV, Max. frequency: 2GHz, Mounting: screw-in, Contact material: CuBe, Manufacturer series: HFS-810, Current rating: 3A, Operating temperature: -40...80°C, Impedance: 50Ω.
