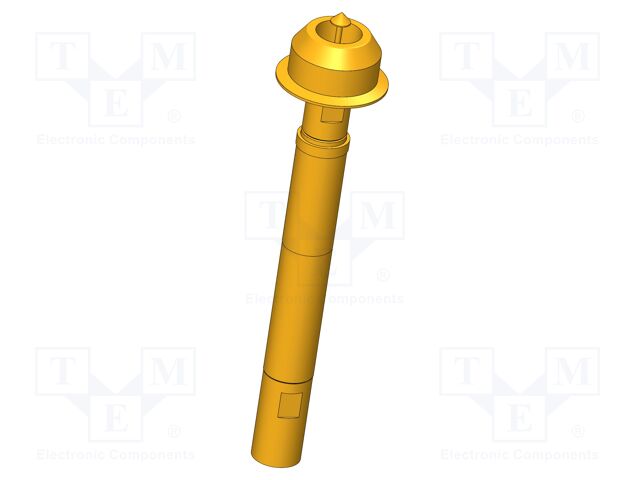

HFS-810 358 180 A 9942 Q INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.8mm
Manufacturer series: HFS-810
Operating temperature: -40...80°C
Current rating: 3A
Impedance: 50Ω
Flange diameter: 10mm
Length: 45mm
Contact material: CuBe
Dielectric strength: 1.1kV
Blade tip shape: cone; head 42
Type of test accessories: test needle
Maksimum spring compression: 3.2mm
Operational spring compression: 2mm
Tip diameter: 1.8mm
Test accessories features: outer conductor maximum current: 10A; self-cleaning
Spring compression force: 10N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 2GHz
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-810 358 180 A 9942 Q INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.8mm, Manufacturer series: HFS-810, Operating temperature: -40...80°C, Current rating: 3A, Impedance: 50Ω, Flange diameter: 10mm, Length: 45mm, Contact material: CuBe, Dielectric strength: 1.1kV, Blade tip shape: cone; head 42, Type of test accessories: test needle, Maksimum spring compression: 3.2mm, Operational spring compression: 2mm, Tip diameter: 1.8mm, Test accessories features: outer conductor maximum current: 10A; self-cleaning, Spring compression force: 10N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 2GHz, кількість в упаковці: 1 шт.
