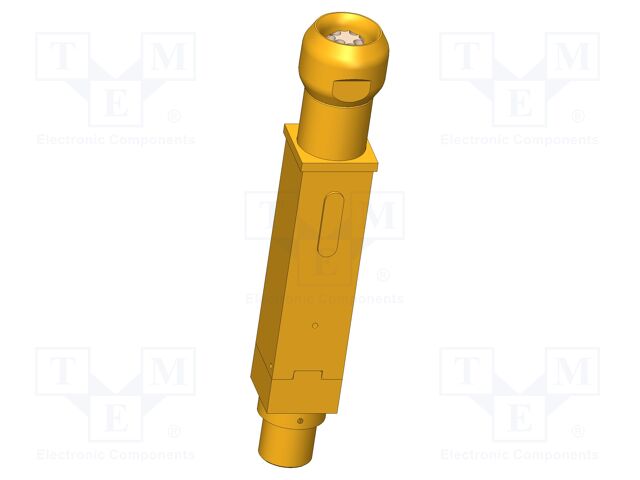

HFS-819 319 090 A20743RV5-H3 INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm
Type of test accessories: test needle
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Current rating: 3A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: cone; head 43; inverted
Tip diameter: 0.9mm
Manufacturer series: HFS-819
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: outer conductor maximum current: 10A; self-cleaning
Length: 49.9mm
Spring compression force: 20.7N
Impedance: 100Ω
Flange diameter: 8.9mm
Dielectric strength: 1.2kV
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-819 319 090 A20743RV5-H3 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm, Type of test accessories: test needle, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Current rating: 3A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: cone; head 43; inverted, Tip diameter: 0.9mm, Manufacturer series: HFS-819, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: outer conductor maximum current: 10A; self-cleaning, Length: 49.9mm, Spring compression force: 20.7N, Impedance: 100Ω, Flange diameter: 8.9mm, Dielectric strength: 1.2kV, кількість в упаковці: 1 шт.
Інші пропозиції HFS-819 319 090 A20743RV5-H3
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
|
|
HFS-819 319 090 A20743RV5-H3 | Виробник : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.9mm Type of test accessories: test needle Operational spring compression: 2mm Maksimum spring compression: 3.7mm Current rating: 3A Contact plating: gold-plated Contact material: CuBe Blade tip shape: cone; head 43; inverted Tip diameter: 0.9mm Manufacturer series: HFS-819 Operating temperature: -40...80°C Mounting: push-in Test accessories features: outer conductor maximum current: 10A; self-cleaning Length: 49.9mm Spring compression force: 20.7N Impedance: 100Ω Flange diameter: 8.9mm Dielectric strength: 1.2kV |
товару немає в наявності |
