Продукція > INGUN > HFS-840 204 051 A 6802 V1-AS3

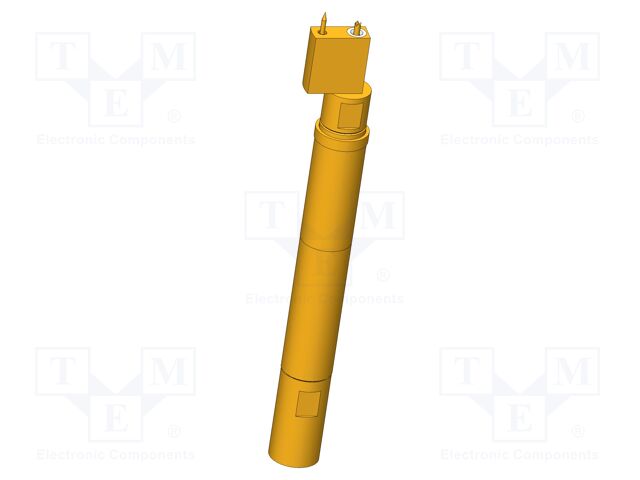

HFS-840 204 051 A 6802 V1-AS3

HFS-840 204 051 A 6802 V1-AS3 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0CA72B69FA0D6&compId=HFS-840-0396.pdf?ci_sign=bb980b9427717ab4915adc76d9dd8ef74e2570a3 Виробник: INGUN
Category: Contact Probes
Description: Test needle; 2A; steel; gold-plated; Ø: 0.51mm; HFS-840; push-in
Mounting: push-in
Manufacturer series: HFS-840
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 2A; self-cleaning
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.51mm
Length: 44mm
Current rating: 2A
Spring compression force: 6.8N
Impedance: 50Ω
Blade tip shape: 4-point; cone; corona
Max. frequency: 4GHz
Contact material: steel
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-840 204 051 A 6802 V1-AS3 INGUN

Category: Contact Probes, Description: Test needle; 2A; steel; gold-plated; Ø: 0.51mm; HFS-840; push-in, Mounting: push-in, Manufacturer series: HFS-840, Contact plating: gold-plated, Test accessories features: outer conductor maximum current: 2A; self-cleaning, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 0.51mm, Length: 44mm, Current rating: 2A, Spring compression force: 6.8N, Impedance: 50Ω, Blade tip shape: 4-point; cone; corona, Max. frequency: 4GHz, Contact material: steel.
