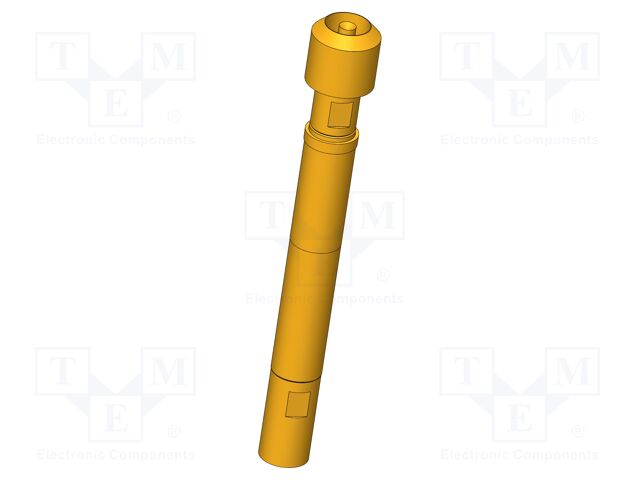

HFS-840 303 150 A 5342 F INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Current rating: 3A
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 1.5mm
Test accessories features: outer conductor maximum current: 10A
Manufacturer series: HFS-840
Spring compression force: 5.3N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 4GHz
Operating temperature: -40...80°C
Impedance: 50Ω
Flange diameter: 6.1mm
Length: 43.2mm
Contact material: CuBe
Blade tip shape: cone; head 42; inverted
Type of test accessories: test needle
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-840 303 150 A 5342 F INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Current rating: 3A, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 1.5mm, Test accessories features: outer conductor maximum current: 10A, Manufacturer series: HFS-840, Spring compression force: 5.3N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 4GHz, Operating temperature: -40...80°C, Impedance: 50Ω, Flange diameter: 6.1mm, Length: 43.2mm, Contact material: CuBe, Blade tip shape: cone; head 42; inverted, Type of test accessories: test needle, кількість в упаковці: 1 шт.
