HFS-840 303 150 A 9342 RF3

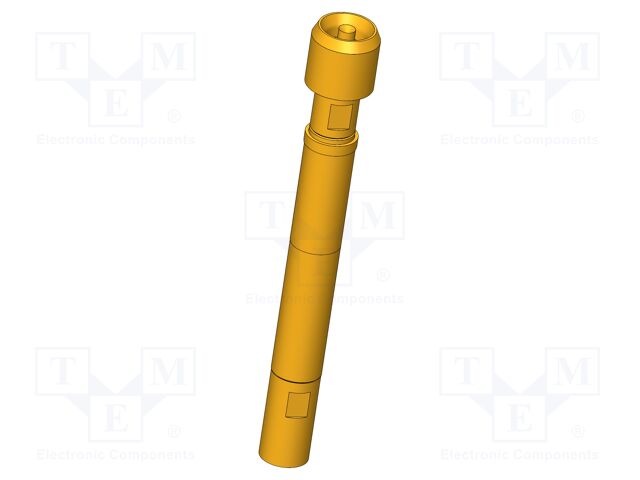

HFS-840 303 150 A 9342 RF3 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF8680DF7D225AC0D6&compId=HFS-840-0234.pdf?ci_sign=3d1f43f6b7b494bd242c2a056d926bbf10361d76 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated
Type of test accessories: test needle
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Contact plating: gold-plated
Tip diameter: 1.5mm
Blade tip shape: cone; head 42; inverted
Spring compression force: 9.3N
Mounting: push-in
Manufacturer series: HFS-840
Test accessories features: outer conductor maximum current: 10A
Contact material: CuBe
Flange diameter: 6.1mm
Length: 43.2mm
Current rating: 3A
Impedance: 50Ω
Dielectric strength: 1.1kV
Operating temperature: -40...80°C
Max. frequency: 4GHz
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-840 303 150 A 9342 RF3 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated, Type of test accessories: test needle, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Contact plating: gold-plated, Tip diameter: 1.5mm, Blade tip shape: cone; head 42; inverted, Spring compression force: 9.3N, Mounting: push-in, Manufacturer series: HFS-840, Test accessories features: outer conductor maximum current: 10A, Contact material: CuBe, Flange diameter: 6.1mm, Length: 43.2mm, Current rating: 3A, Impedance: 50Ω, Dielectric strength: 1.1kV, Operating temperature: -40...80°C, Max. frequency: 4GHz.
