HFS-840 303 150 A 9942 RF3

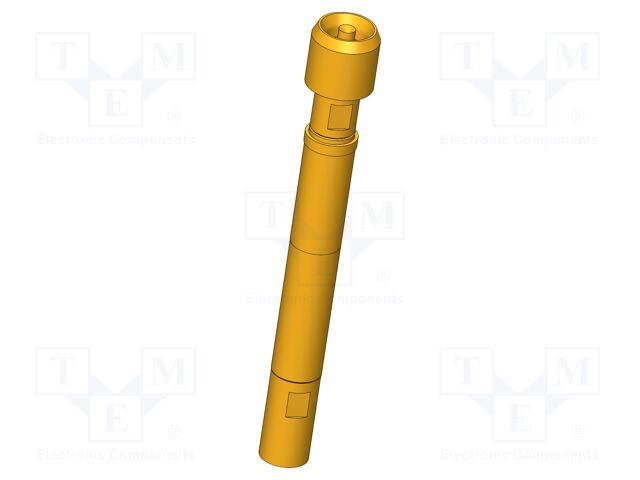

HFS-840 303 150 A 9942 RF3 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C9899E2300D6&compId=HFS-840-0273.pdf?ci_sign=4e442651049b81dc2874e1f0155f6bdb6ac1a848 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Manufacturer series: HFS-840
Operating temperature: -40...80°C
Tip diameter: 1.5mm
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Flange diameter: 6.1mm
Length: 43.2mm
Current rating: 3A
Spring compression force: 10N
Impedance: 50Ω
Dielectric strength: 1.1kV
Max. frequency: 4GHz
Blade tip shape: cone; head 42; inverted
Contact material: CuBe
Test accessories features: outer conductor maximum current: 10A
Contact plating: gold-plated
Mounting: push-in
Type of test accessories: test needle
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис HFS-840 303 150 A 9942 RF3 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Manufacturer series: HFS-840, Operating temperature: -40...80°C, Tip diameter: 1.5mm, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Flange diameter: 6.1mm, Length: 43.2mm, Current rating: 3A, Spring compression force: 10N, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 4GHz, Blade tip shape: cone; head 42; inverted, Contact material: CuBe, Test accessories features: outer conductor maximum current: 10A, Contact plating: gold-plated, Mounting: push-in, Type of test accessories: test needle.
