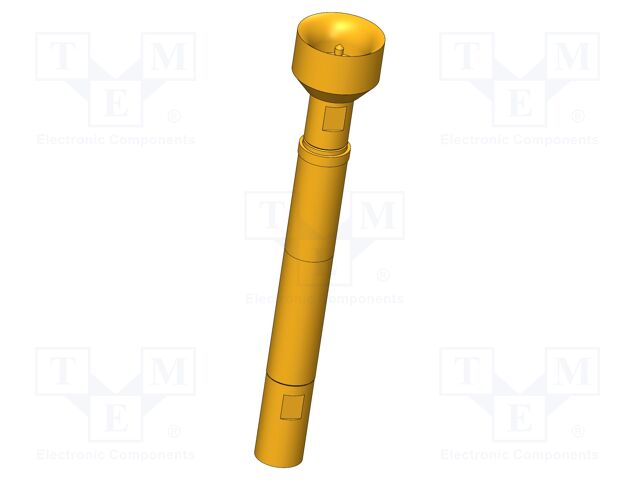

HFS-840 308 080 A 8043 X

HFS-840 308 080 A 8043 X INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0CB1D6CE5C0D6&compId=HFS-840-0560.pdf?ci_sign=9a2af638b2d57ebd7cf823d52fc45c56aba5e402 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated
Manufacturer series: HFS-840
Mounting: push-in
Contact material: CuBe
Type of test accessories: test needle
Contact plating: gold-plated
Test accessories features: outer conductor maximum current: 10A; self-cleaning
Operating temperature: -40...80°C
Tip diameter: 0.8mm
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Flange diameter: 8mm
Length: 44mm
Spring compression force: 8N
Current rating: 3A
Impedance: 50Ω
Max. frequency: 4GHz
Blade tip shape: cone; head 43
