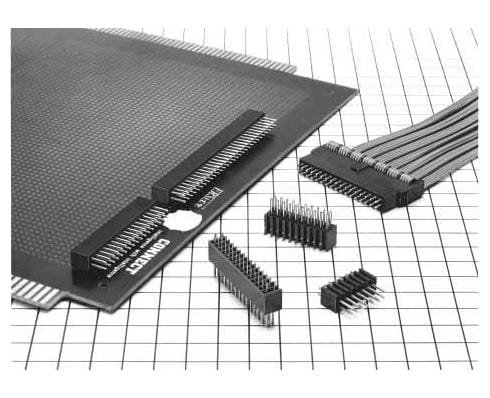

HIF3E-20PA-2.54DSA(71) Hirose Electric Co Ltd

Description: CONN HEADER VERT 20POS 2.54MM, Contact Length - Mating: 0.244" (6.20mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.657" (16.70mm), Shrouding: Unshrouded, Insulation Height: 0.299" (7.60mm), Contact Length - Post: 0.114" (2.90mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 1A, Voltage Rating: 200V, Connector Type: Header, Packaging: Tray.
