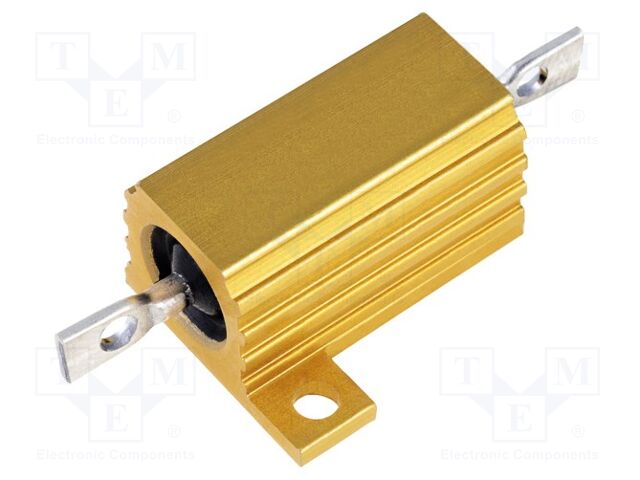

HS15 0R22 J ARCOL
Виробник: ARCOL
Category: Power resistors
Description: Resistor: wire-wound; with heatsink; screw; 220mΩ; 15W; ±5%
Type of resistor: wire-wound
Kind of resistor: with heatsink
Mounting: screw
Resistance: 0.22Ω
Power: 15W
Tolerance: ±5%
Max. operating voltage: 265V
Body dimensions: 19.9x21x11mm
Resistor features: needs additional heatsink
Temperature coefficient: 100ppm/°C
Leads: for soldering
Mounting holes pitch: 14.3x15.9mm
Power without heatsink: 7W
кількість в упаковці: 1 шт
Category: Power resistors
Description: Resistor: wire-wound; with heatsink; screw; 220mΩ; 15W; ±5%
Type of resistor: wire-wound
Kind of resistor: with heatsink
Mounting: screw
Resistance: 0.22Ω
Power: 15W
Tolerance: ±5%
Max. operating voltage: 265V
Body dimensions: 19.9x21x11mm
Resistor features: needs additional heatsink
Temperature coefficient: 100ppm/°C
Leads: for soldering
Mounting holes pitch: 14.3x15.9mm
Power without heatsink: 7W
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис HS15 0R22 J ARCOL
Category: Power resistors, Description: Resistor: wire-wound; with heatsink; screw; 220mΩ; 15W; ±5%, Type of resistor: wire-wound, Kind of resistor: with heatsink, Mounting: screw, Resistance: 0.22Ω, Power: 15W, Tolerance: ±5%, Max. operating voltage: 265V, Body dimensions: 19.9x21x11mm, Resistor features: needs additional heatsink, Temperature coefficient: 100ppm/°C, Leads: for soldering, Mounting holes pitch: 14.3x15.9mm, Power without heatsink: 7W, кількість в упаковці: 1 шт.
Інші пропозиції HS15 0R22 J
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
HS15 0R22 J | Виробник : ARCOL |
Category: Power resistors Description: Resistor: wire-wound; with heatsink; screw; 220mΩ; 15W; ±5% Type of resistor: wire-wound Kind of resistor: with heatsink Mounting: screw Resistance: 0.22Ω Power: 15W Tolerance: ±5% Max. operating voltage: 265V Body dimensions: 19.9x21x11mm Resistor features: needs additional heatsink Temperature coefficient: 100ppm/°C Leads: for soldering Mounting holes pitch: 14.3x15.9mm Power without heatsink: 7W |
товар відсутній |
