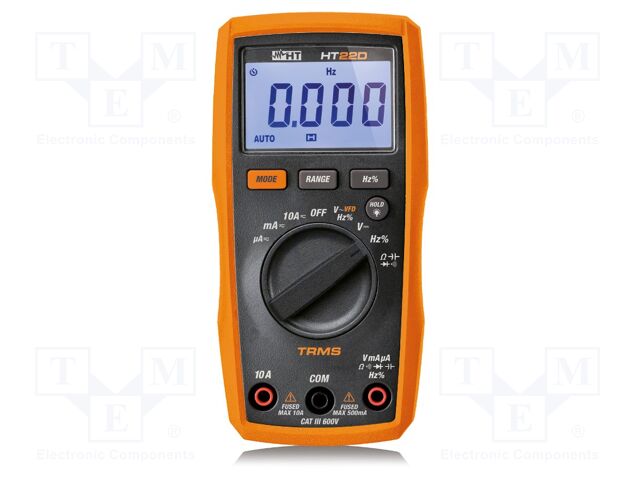

HT22D HT INSTRUMENTS

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 4-digit; VDC: 400mV,4V,40V,400V,600V, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance, Kind of display used: LCD, Display parameters: 4-digit, DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V, DC voltage measuring accuracy: ±(0.8% + 3 digit), AC voltage measuring range: 4V; 40V; 400V; 600V, AC voltage measuring accuracy: ±(1.2% + 5 digit), DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A, DC current measuring accuracy: ±(1% + 5 digit), AC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A, AC current measuring accuracy: ±(1% + 5 digit), True effective value measurement: True RMS, Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF, Capacitance measuring accuracy: ±(2.5%+ 5 digit), Frequency measuring range: 9.999Hz; 99.99Hz; 999.9Hz; 9.999kHz; 99.99kHz; 999.9kHz; 9.999MHz, Frequency measuring accuracy: ±(1.2%+5 digit), Resistance measuring accuracy: ±(1.5%+5 digit), Test: diodes, Operating temperature: 0...40°C, Pollution degree: 2, IP rating: IP40, Dimensions: 150x75x45mm, Power supply: battery LR03 AAA 1,5V x2, Standard equipment: carrying case; test leads ( 2pcs.); user's manual, Conform to the norm: CAT III 600V; EN 61010-1; EN 61326-1, Measuring instrument features: AC VFD feature; automatic power-off; auto polarity; autoranging; HOLD function; low battery indicator, Battery/ rechargeable battery: battery LR03 AAA 1,5V x2, Continuity test: .
