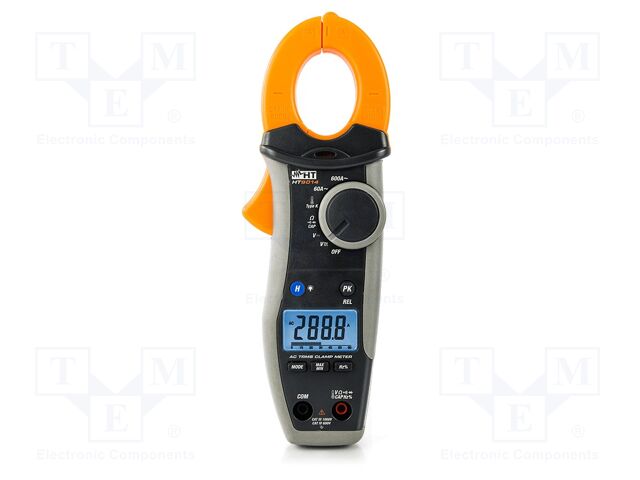

HT9014 HT INSTRUMENTS

Category: Meters and AC Clamp Probes, Description: Meter: multifunction; pincers type; LCD; Øcable: 30mm; True RMS, Type of meter: multifunction, Kind of meter: pincers type, Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MIN/MAX function; PEAK function; REL function, Kind of display used: LCD, Max. diameter of measured cable: 30mm, AC current measuring range: 60A; 600A, AC current measuring accuracy: ±(2.8% + 8 digit), DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(1% + 3 digit), AC voltage measuring range: 6V; 60V; 600V; 1kV, AC voltage measuring accuracy: ±(1% + 10 digit), True effective value measurement: True RMS, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF, Capacitance measuring accuracy: ±(2.5%+ 5 digit), Frequency measuring range: 99.99Hz; 999.9Hz; 9.999kHz; 60kHz, Frequency measuring accuracy: ±(1%+5 digit), Temperature measuring range: -20...760°C, Temperature measurement accuracy: ±(2% + 3°C), Test: diodes, Pollution degree: 2, Dimensions: 215x74x43mm, Power supply: battery 6F22 9V x1, Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; duty cycle; frequency; resistance; temperature, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1, Operating temperature: 5...40°C, Standard equipment: adapter for connecting K-type probe to the meter; carrying case; K-type temperature probe; test leads ( 2pcs.); user's manual, Battery/ rechargeable battery: battery 6F22 9V x1, Continuity test: .
