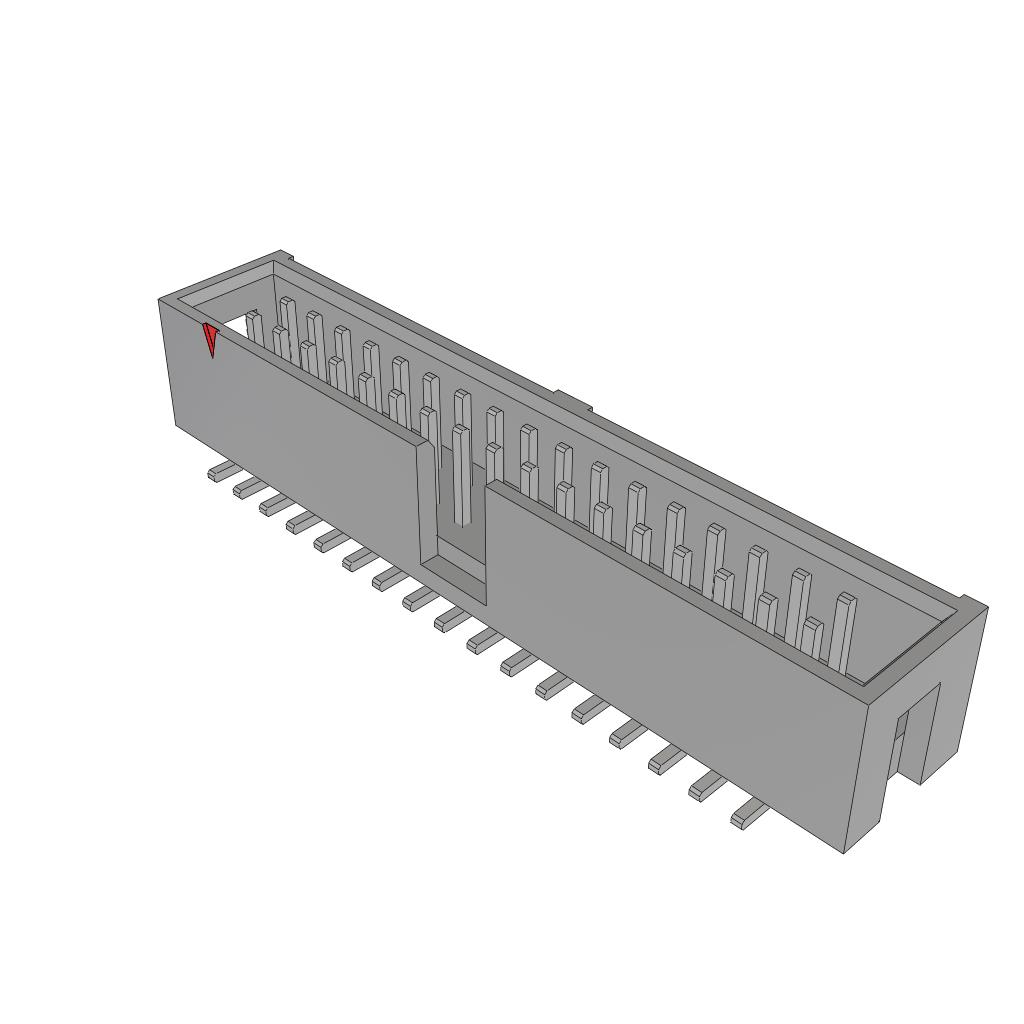

HTST-117-01-T-DV Samtec Inc.

Description: CONN HEADER SMD 34POS 2.54MM, Contact Length - Mating: 0.250" (6.35mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.350" (8.89mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 34, Mounting Type: Surface Mount, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Features: Keying Slot, Packaging: Tube.
