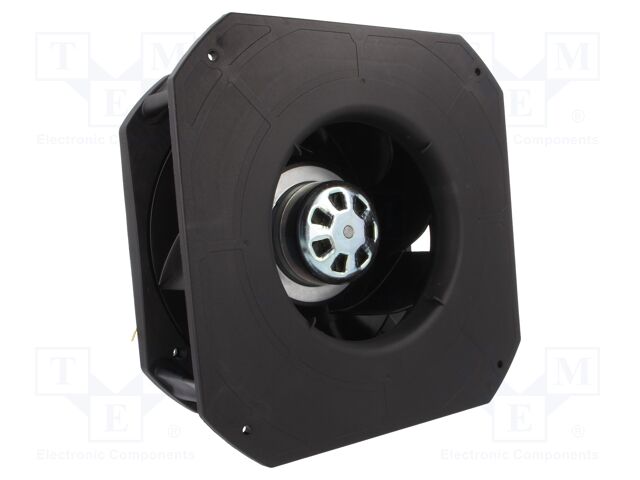

K3G225-RE07-03 EBM-PAPST
Виробник: EBM-PAPSTCategory: EC Fans
Description: Fan: EC; radial; 230VAC; 270x270x131mm; 705m3/h; ball; 2860rpm; IP54
Type of fan: EC
Kind of fan: radial
Operating voltage: 200...240V AC
Fan dimensions: 270x270x131mm
Power consumption: 170W
Current rating: 1.4A
Kind of Bearing: ball
Rotational rate/speed: 2860rpm
Frequency: 50...60Hz
IP rating: IP54
Leads: leads x7
Lead length: 0.45m
Operating temperature: -25...60°C
Kind of motor: 1-phase
Impeller material: polyamide
Fan motor: M3G055-DF
Colour: black
Enclosure material: polyamide
Static pressure: 46.71mm H2O
Supply voltage: 230V AC
Insulation class: B
Fan efficiency: 705m3/h
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; tach output; thermal overload protection for electronics / motor
Protection class: I
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 24592.21 грн |
| 3+ | 22143.63 грн |
Відгуки про товар
Написати відгук
Технічний опис K3G225-RE07-03 EBM-PAPST
Category: EC Fans, Description: Fan: EC; radial; 230VAC; 270x270x131mm; 705m3/h; ball; 2860rpm; IP54, Type of fan: EC, Kind of fan: radial, Operating voltage: 200...240V AC, Fan dimensions: 270x270x131mm, Power consumption: 170W, Current rating: 1.4A, Kind of Bearing: ball, Rotational rate/speed: 2860rpm, Frequency: 50...60Hz, IP rating: IP54, Leads: leads x7, Lead length: 0.45m, Operating temperature: -25...60°C, Kind of motor: 1-phase, Impeller material: polyamide, Fan motor: M3G055-DF, Colour: black, Enclosure material: polyamide, Static pressure: 46.71mm H2O, Supply voltage: 230V AC, Insulation class: B, Fan efficiency: 705m3/h, Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; tach output; thermal overload protection for electronics / motor, Protection class: I, кількість в упаковці: 1 шт.
Інші пропозиції K3G225-RE07-03 за ціною від 27594.37 грн до 29510.65 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
K3G225-RE07-03 | Виробник : EBM-PAPST |
Category: EC Fans Description: Fan: EC; radial; 230VAC; 270x270x131mm; 705m3/h; ball; 2860rpm; IP54 Type of fan: EC Kind of fan: radial Operating voltage: 200...240V AC Fan dimensions: 270x270x131mm Power consumption: 170W Current rating: 1.4A Kind of Bearing: ball Rotational rate/speed: 2860rpm Frequency: 50...60Hz IP rating: IP54 Leads: leads x7 Lead length: 0.45m Operating temperature: -25...60°C Kind of motor: 1-phase Impeller material: polyamide Fan motor: M3G055-DF Colour: black Enclosure material: polyamide Static pressure: 46.71mm H2O Supply voltage: 230V AC Insulation class: B Fan efficiency: 705m3/h Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; tach output; thermal overload protection for electronics / motor Protection class: I кількість в упаковці: 1 шт |
на замовлення 5 шт: термін постачання 14-21 дні (днів) |
|
