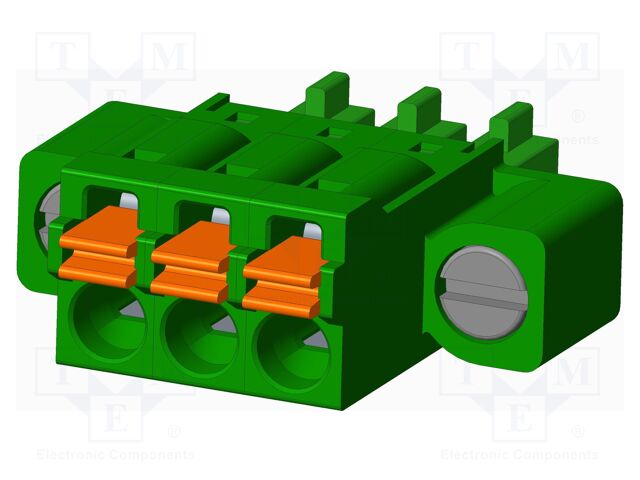

KD0330510000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 5.5A; 300V
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Number of pins: 3
Spatial orientation: straight
Electrical mounting: spring clamp
Contacts pitch: 3.81mm
Connector pinout layout: 1x3
Contact plating: tinned
Body material: thermoplastic
Contact material: phosphor bronze
Wire size: 24AWG...16AWG
Locking system: friction lock; threaded joint
Mechanical mounting: for cable
Colour: green
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 5.5A
Flammability rating: UL94V-0
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис KD0330510000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 5.5A; 300V, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Number of pins: 3, Spatial orientation: straight, Electrical mounting: spring clamp, Contacts pitch: 3.81mm, Connector pinout layout: 1x3, Contact plating: tinned, Body material: thermoplastic, Contact material: phosphor bronze, Wire size: 24AWG...16AWG, Locking system: friction lock; threaded joint, Mechanical mounting: for cable, Colour: green, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 5.5A, Flammability rating: UL94V-0, кількість в упаковці: 1 шт.
Інші пропозиції KD0330510000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| KD0330510000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 3POS STR 3.81MM Packaging: Bulk Features: Mating Flange Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 3 Pitch: 0.150" (3.81mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screwless - Leg Spring, Push-In Spring Number of Levels: 1 Wire Gauge or Range - AWG: 16-24 AWG Positions Per Level: 3 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 5.5 A Voltage - UL: 300 V |
товару немає в наявності |
||
| KD0330510000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks TB SPRING PLUG WF |
товару немає в наявності |
||
|
|
KD0330510000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 5.5A; 300V Type of connector: pluggable terminal block Connector: plug Kind of connector: female Number of pins: 3 Spatial orientation: straight Electrical mounting: spring clamp Contacts pitch: 3.81mm Connector pinout layout: 1x3 Contact plating: tinned Body material: thermoplastic Contact material: phosphor bronze Wire size: 24AWG...16AWG Locking system: friction lock; threaded joint Mechanical mounting: for cable Colour: green Rated voltage: 300V Operating temperature: -40...115°C Current rating: 5.5A Flammability rating: UL94V-0 |
товару немає в наявності |
