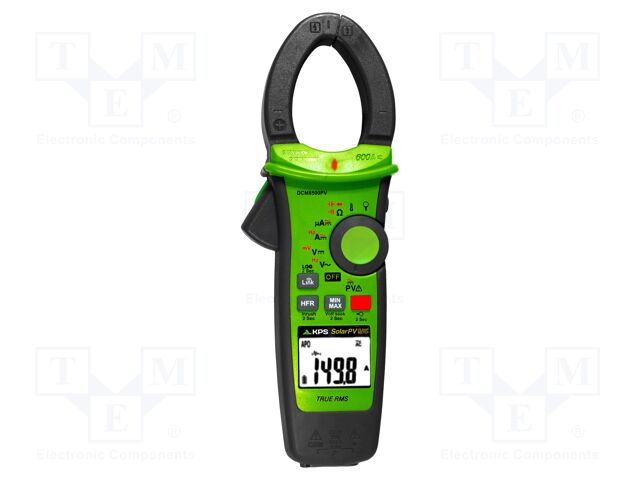

KPSDCM8500PVCBINT

Category: PV and EVSE Testers and Meters, Description: Meter: multifunction; VAC: 600V,1.5kV; I AC: 60A,600A; 100uF,1mF, Type of meter: multifunction, AC voltage measuring range: 600V; 1.5kV, AC current measuring range: 60A; 600A, DC voltage measuring range: 600V; 1kV; 2kV, Standard equipment: case; test leads; thermocouple; user's manual, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; inrush current; temperature, Battery/ rechargeable battery: battery LR6 AA 1,5V x2, Interface: Bluetooth, Power supply: battery LR6 AA 1,5V x2, Dimensions: 62x240x41mm, Kind of display used: LCD, Application: photovoltaics, True effective value measurement: True RMS, Illumination: yes, Temperature measuring range: -40...400°C, Capacitance measuring range: 100µF; 1mF, Max. diameter of measured cable: 37mm, Diode test: 1.5V, DC current measuring range: 60A; 600A, Frequency measuring range: 100Hz; 1kHz; 10kHz, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ, Display parameters: (6000), Kind of meter: AC/DC pincers type; digital, Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX/AVG function; REL function, Test: circuit continuity; diodes, Additional functions: data logger; torch.
