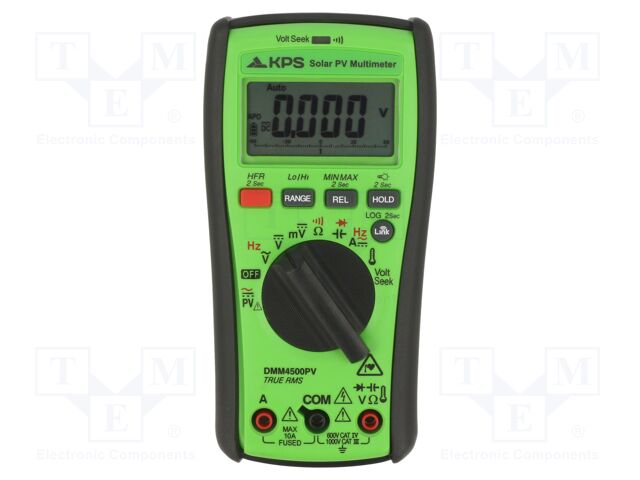

KPSDMM4500PV

Category: PV and EVSE Testers and Meters, Description: Meter: digital multimeter; VAC accuracy: ±(2%+5digit); -40÷400°C, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Kind of display used: LCD, Display parameters: (6000), DC voltage measuring range: 600V; 2kV, DC voltage measuring accuracy: ±(2% + 5 digit), AC voltage measuring range: 600V; 1.5kV, AC voltage measuring accuracy: ±(2% + 5 digit), DC current measuring range: 6A; 10A, DC current measuring accuracy: ±(1% + 3 digit), AC current measuring range: 6A; 10A, AC current measuring accuracy: ±(1.5% + 3 digit), True effective value measurement: True RMS, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 40MΩ, Capacitance measuring range: 0F; 1µF; 10µF; 100µF; 1mF; 10mF, Capacitance measuring accuracy: ±(1.9%+ 2 digit), Frequency measuring range: 100Hz; 1kHz; 10kHz; 100kHz, Frequency measuring accuracy: ±(0.1%+2 digit), Temperature measuring range: -40...400°C, Resistance measuring accuracy: ±(0.9%+2 digit), Diode test: 1.5V, Power supply: battery LR6 AA 1,5V x2, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Dimensions (W x H x D): 74x156x44mm, Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; MIN/MAX/REL function, Illumination: yes, Temperature measurement accuracy: ±(1% + 20 digit), Interface: Bluetooth, Test: circuit continuity; diodes, Additional functions: data logger; torch, Application: photovoltaics.
