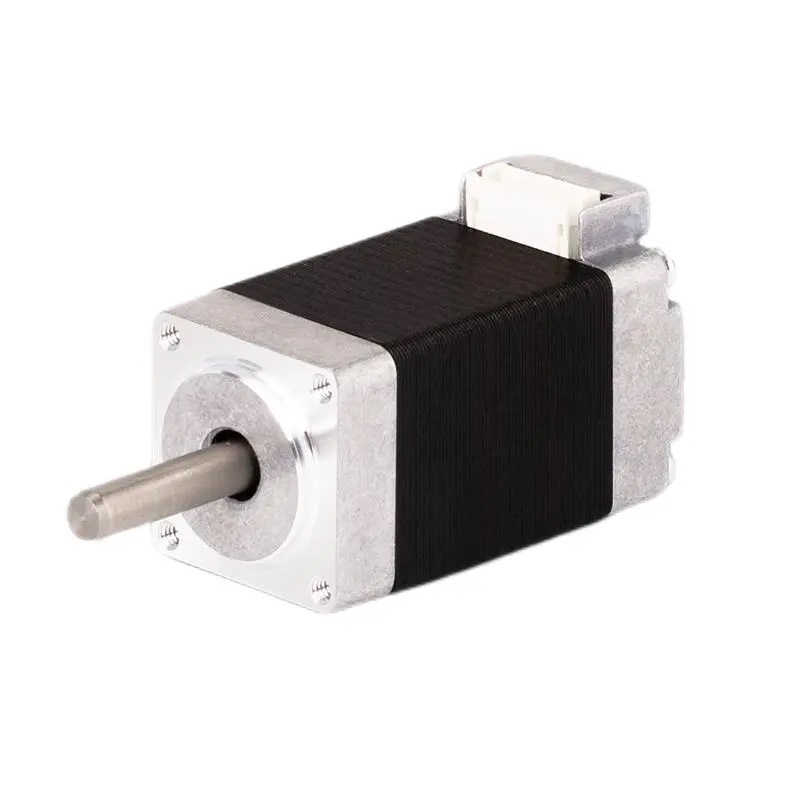

KST-20D25-0001 Guangdong Kaifull Electronics Technology Co., Ltd.
Виробник: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D25-0001 1.8 0.6 0.
Steps per Revolution: 200.0
Coil Resistance: 10 Ohms
Current Rating (Amps): 0.6 A
NEMA Frame Size: 8
Length - Shaft and Bearing: 0.669" (17.00mm)
Mounting Hole Spacing: 0.630" (16.00mm)
Diameter - Shaft: 0.157" (4.00mm)
Torque - Holding (oz-in / mNm): 3.12 / 22
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Voltage - Rated: 6.16VDC
Packaging: Case
Відгуки про товар
Написати відгук
Технічний опис KST-20D25-0001 Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D25-0001 1.8 0.6 0., Steps per Revolution: 200.0, Coil Resistance: 10 Ohms, Current Rating (Amps): 0.6 A, NEMA Frame Size: 8, Length - Shaft and Bearing: 0.669" (17.00mm), Mounting Hole Spacing: 0.630" (16.00mm), Diameter - Shaft: 0.157" (4.00mm), Torque - Holding (oz-in / mNm): 3.12 / 22, Step Angle: 1.8°, Operating Temperature: -10°C ~ 50°C, Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm), Voltage - Rated: 6.16VDC, Packaging: Case.
